- 規格型號：13701245
- 頻率：10MHz

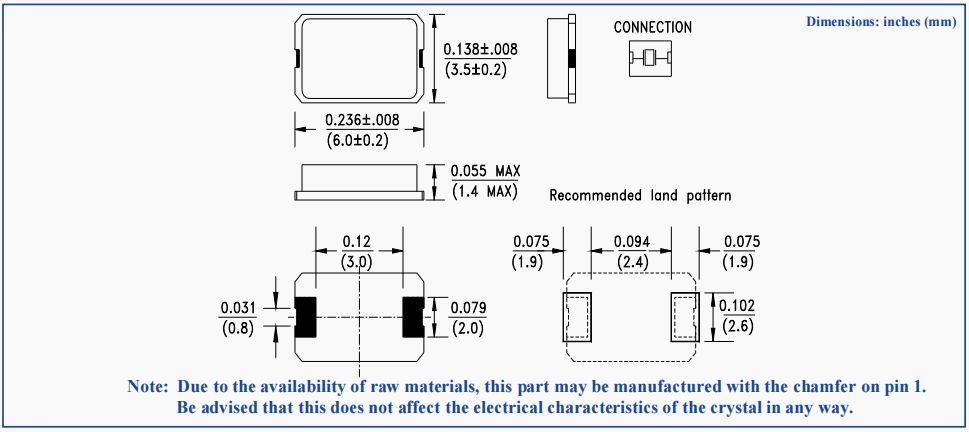

- 尺寸：6035mm
- 產品描述：艾伯康高精度晶振,ABM7陶瓷二腳晶振,ABM7-10.000MHZ-D2Y-T無人機晶振，美國Abracon晶振公司，艾博康晶振，ABM7晶振，ABM7-10.000MHZ-D2Y-T晶振，陶瓷晶振，進口晶振，6035晶振，二腳晶振，無源晶振，美國晶振，高品質...

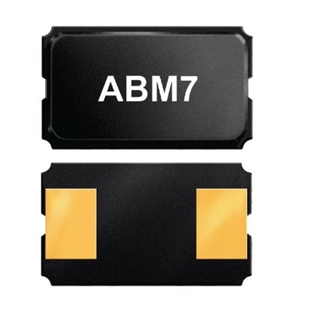

艾伯康高精度晶振,ABM7陶瓷二腳晶振,ABM7-10.000MHZ-D2Y-T無人機晶振
航欄(10).jpg)
艾伯康高精度晶振,ABM7陶瓷二腳晶振,ABM7-10.000MHZ-D2Y-T無人機晶振，美國Abracon晶振公司，艾博康晶振，ABM7晶振，ABM7-10.000MHZ-D2Y-T晶振，陶瓷晶振，進口晶振，6035晶振，二腳晶振，無源晶振，美國晶振，高品質晶振，低損耗晶振，高精度晶振，貼片晶振。特點：高度低(最大1.4 mm)，陶瓷封裝確保高可靠性，小尺寸貼片，適合高密度應用，優越的耐熱玻璃密封，寬工作溫度，計算機，調制解調器，通信設備，薄設備，工業廣泛的溫度應用

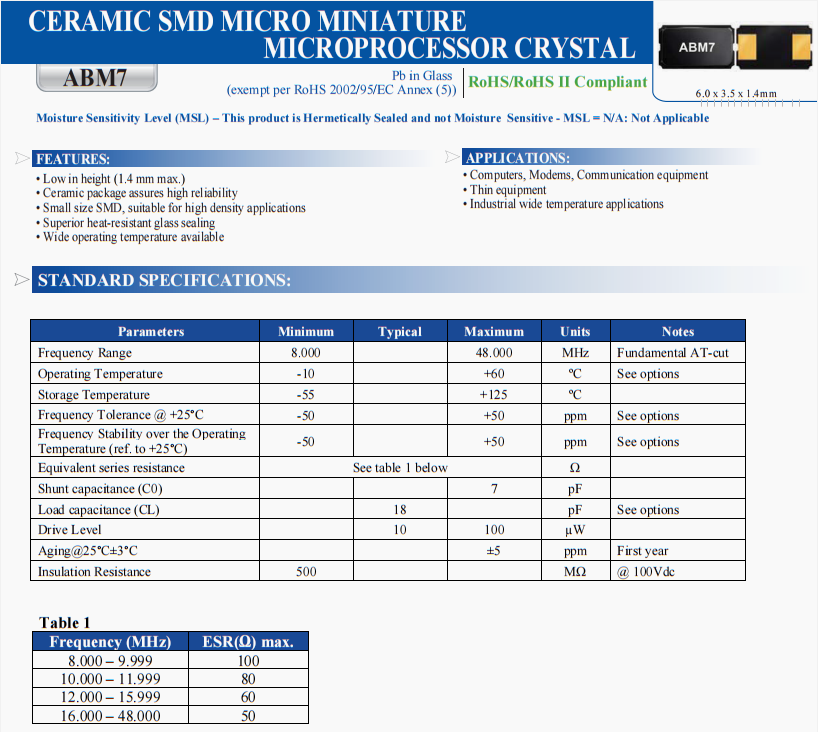

| 參數 | Minimum | Typical | Maximum | Units | Notes |
| 頻率 | 8.000 | 48.000 | MHz | Fundamental AT-cut | |
| 工作溫度 | -10 | +60 | ºC | See options | |
| 儲存溫度 | -55 | +125 | ºC | ||
| 頻率容差 | -50 | +50 | ppm | See options | |
| 工作溫度范圍內的頻率穩定度 | -50 | +50 | ppm | See options | |
| 等效串聯電阻 | See table 1 below | ? | |||
| 分流電容 | 7 | pF | |||
| 負載電容 | 18 | pF | See options | ||
| 驅動電平 | 10 | 100 | µW | ||
| 老化 | ±5 | ppm | First year | ||
| 絕緣電阻 | 500 | M? | @ 100Vdc | ||
艾伯康高精度晶振,ABM7陶瓷二腳晶振,ABM7-10.000MHZ-D2Y-T無人機晶振
| 編碼 | 品牌 | 型號 | 頻率 | 頻率穩定度 | 頻率容差 | 負載 |
| ABM7-10.000MHZ-D2Y-T | Abracon | ABM7 | 10 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM7-11.0592MHZ-D2Y-T | Abracon | ABM7 | 11.0592 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM7-11.2896MHZ-D2Y-T | Abracon | ABM7 | 11.2896 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM7-12.000MHZ-B4-T | Abracon | ABM7 | 12 MHz | ±50ppm | ±30ppm | 18 pF |
| ABM7-12.000MHZ-D2Y-T | Abracon | ABM7 | 12 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM7-12.288MHZ-D2Y-T | Abracon | ABM7 | 12.288 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM7-12.500MHZ-D2Y-T | Abracon | ABM7 | 12.5 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM7-13.52127MHZ-10-R50-D4Q-T | Abracon | ABM7 | 13.52127 MHz | ±100ppm | ±30ppm | 10 pF |
| ABM7-13.560MHZ-10-R50-D4Q-T | Abracon | ABM7 | 13.56 MHz | ±100ppm | ±30ppm | 10 pF |
| ABM7-13.560MHZ-D2Y-T | Abracon | ABM7 | 13.56 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM7-14.31818MHZ-D2Y-T | Abracon | ABM7 | 14.31818 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM7-14.31818MHZ-S-B-4-Y-T | Abracon | ABM7 | 14.31818 MHz | ±30ppm | ±30ppm | |
| ABM7-14.7456MHZ-B4-T | Abracon | ABM7 | 14.7456 MHz | ±50ppm | ±30ppm | 18 pF |
| ABM7-14.7456MHZ-D2Y-T | Abracon | ABM7 | 14.7456 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM7-16.000MHZ-4-T | Abracon | ABM7 | 16 MHz | ±50ppm | ±30ppm | 18 pF |
| ABM7-16.000MHZ-D2Y-T | Abracon | ABM7 | 16 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM7-18.432MHZ-D2Y-T | Abracon | ABM7 | 18.432 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM7-19.6608MHZ-D2Y-T | Abracon | ABM7 | 19.6608 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM7-20.000MHZ-B4-T | Abracon | ABM7 | 20 MHz | ±50ppm | ±30ppm | 18 pF |
| ABM7-20.000MHZ-D2Y-T | Abracon | ABM7 | 20 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM7-22.1184MHZ-D2Y-T | Abracon | ABM7 | 22.1184 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM7-24.000MHZ-D2Y-T | Abracon | ABM7 | 24 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM7-24.576MHZ-D2Y-T | Abracon | ABM7 | 24.576 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM7-25.000MHZ-B-4-Y-T | Abracon | ABM7 | 25 MHz | ±30ppm | ±30ppm | 18 pF |
| ABM7-25.000MHZ-B4-T | Abracon | ABM7 | 25 MHz | ±50ppm | ±30ppm | 18 pF |
| ABM7-25.000MHZ-D2Y-T | Abracon | ABM7 | 25 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM7-27.000MHZ-D2Y-T | Abracon | ABM7 | 27 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM7-29.4912MHZ-D2Y-T | Abracon | ABM7 | 29.4912 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM7-30.000MHZ-D2Y-T | Abracon | ABM7 | 30 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM7-32.000MHZ-D2Y-T | Abracon | ABM7 | 32 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM7-33.000MHZ-D2Y-T | Abracon | ABM7 | 33 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM7-40.000MHZ-D2Y-F-T | Abracon | ABM7 | 40 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM7-48.000MHZ-B-4-T | Abracon | ABM7 | 48 MHz | ±50ppm | ±30ppm | 18 pF |
| ABM7-48.000MHZ-D2Y-F-T | Abracon | ABM7 | 48 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM7-48.000MHZ-S-B-4-Y-T | Abracon | ABM7 | 48 MHz | ±30ppm | ±30ppm | |
| ABM7-8.000MHZ-8-R80-D2Y-T | Abracon | ABM7 | 8 MHz | ±30ppm | ±20ppm | 8 pF |
| ABM7-8.000MHZ-D2Y-T | Abracon | ABM7 | 8 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM7-9.81563MHZ-10-R50-D4Q-T | Abracon | ABM7 | 9.81563 MHz | ±100ppm | ±30ppm | 10 pF |
| ABM7-9.8304MHZ-D2Y-T | Abracon | ABM7 | 9.8304 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM7-9.84375MHZ-10-R50-D4Q-T | Abracon | ABM7 | 9.84375 MHz | ±100ppm | ±30ppm | 10 pF |
