- 規格型號：20361589
- 頻率：12.288MHz
- 尺寸：3225mm
- 產品描述：ABM8AIG-12.288MHZ-12-2-T3進口晶振,Abracon進口3225晶振,ABM8AIG汽車動力總成晶振，美國Abracon晶振公司，艾博康晶振，ABM8AIG晶振，ABM8AIG-12.288MHZ-12-2-T3晶振，進口晶振，無源晶振，美國晶振，高品質晶振，低損...
ABM8AIG-12.288MHZ-12-2-T3進口晶振,Abracon進口3225晶振,ABM8AIG汽車動力總成晶振
航欄(10).jpg)

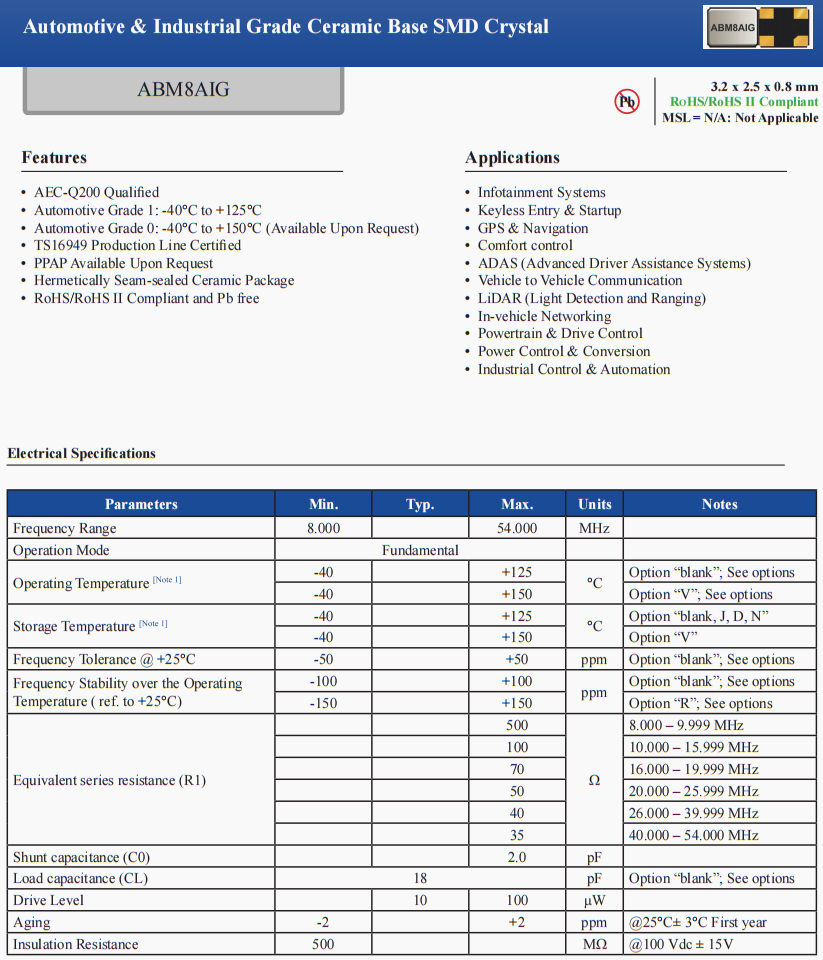

ABM8AIG-12.288MHZ-12-2-T3進口晶振,Abracon進口3225晶振,ABM8AIG汽車動力總成晶振，美國Abracon晶振公司，艾博康晶振，ABM8AIG晶振，ABM8AIG-12.288MHZ-12-2-T3晶振，進口晶振，無源晶振，美國晶振，高品質晶振，低損耗晶振，高精度晶振，3225晶振，四腳晶振，石英晶體，貼片晶振。AEC-Q200合格，汽車等級1:-40°C至+125°C，汽車等級0:-40°C至+150°C(可根據要求提供)，TS16949生產線認證，PPAP可根據要求提供，密封密封陶瓷封裝，符合RoHS/RoHS II標準且不含鉛，信息娛樂系統，無鑰匙進入和啟動，GPS和導航，舒適控制，ADAS(高級駕駛輔助系統)，車對車通信，激光雷達(光探測和測距)，車載網絡，動力總成和驅動控制，電源控制和轉換，工業控制和自動化
| 參數 | Min. | Typ. | Max. | Units | Notes |
| 頻率范圍 | 8.000 | 54.000 | MHz | ||
| 工作模式 | Fundamental | ||||
| 工作溫度 | -40 | +125 | °C | Option “blank”; See options | |
| -40 | +150 | Option “V”; See options | |||
| 儲存溫度 | -40 | +125 | °C | Option “blank,J,D, N” | |
| -40 | +150 | Option “V” | |||
| 頻率容差 | -50 | +50 | ppm | Option “blank”; See options | |
| 頻率穩定度 | -100 | +100 | ppm | Option “blank”; See options | |
| -150 | +150 | Option “R”; See options | |||
| 分流電容 | 2.0 | pF | |||
| 輔助電容 | 18 | pF | Option “blank”; See options | ||
| 驅動電平 | 10 | 100 | μW | ||
| 老化 | -2 | +2 | ppm | @25°C± 3°C First year | |
| 絕緣電阻 | 500 | MΩ | @100 Vdc ± 15V | ||
ABM8AIG-12.288MHZ-12-2-T3進口晶振,Abracon進口3225晶振,ABM8AIG汽車動力總成晶振
| 編碼 | 品牌 | 型號 | 頻率 | 頻率穩定度 | 頻率容差 | 負載 |
| ABM8AIG-10.000MHZ-12-2-T3 | Abracon | ABM8AIG | 10 MHz | ±100ppm | ±20ppm | 12 pF |
| ABM8AIG-10.000MHZ-12-2Z-T3 | Abracon | ABM8AIG | 10 MHz | ±50ppm | ±20ppm | 12 pF |
| ABM8AIG-12.000MHZ-12-2-T3 | Abracon | ABM8AIG | 12 MHz | ±100ppm | ±20ppm | 12 pF |
| ABM8AIG-12.000MHZ-12-2Z-T3 | Abracon | ABM8AIG | 12 MHz | ±50ppm | ±20ppm | 12 pF |
| ABM8AIG-12.000MHZ-12-D2Z-T | Abracon | ABM8AIG | 12 MHz | ±50ppm | ±20ppm | 12 pF |
| ABM8AIG-12.000MHZ-2-T | Abracon | ABM8AIG | 12 MHz | ±100ppm | ±20ppm | 18 pF |
| ABM8AIG-12.000MHZ-4-T | Abracon | ABM8AIG | 12 MHz | ±100ppm | ±30ppm | 18 pF |
| ABM8AIG-12.000MHZ-8-D4Z-T | Abracon | ABM8AIG | 12 MHz | ±50ppm | ±30ppm | 8 pF |
| ABM8AIG-12.288MHZ-12-2-T3 | Abracon | ABM8AIG | 12.288 MHz | ±100ppm | ±20ppm | 12 pF |
| ABM8AIG-12.288MHZ-12-2Z-T3 | Abracon | ABM8AIG | 12.288 MHz | ±50ppm | ±20ppm | 12 pF |
| ABM8AIG-13.000MHZ-12-2-T3 | Abracon | ABM8AIG | 13 MHz | ±100ppm | ±20ppm | 12 pF |
| ABM8AIG-13.000MHZ-12-2Z-T3 | Abracon | ABM8AIG | 13 MHz | ±50ppm | ±20ppm | 12 pF |
| ABM8AIG-13.560MHZ-12-2-T3 | Abracon | ABM8AIG | 13.56 MHz | ±100ppm | ±20ppm | 12 pF |
| ABM8AIG-13.560MHZ-12-2Z-T3 | Abracon | ABM8AIG | 13.56 MHz | ±50ppm | ±20ppm | 12 pF |
| ABM8AIG-14.31818MHZ-12-2-T3 | Abracon | ABM8AIG | 14.31818 MHz | ±100ppm | ±20ppm | 12 pF |
| ABM8AIG-14.31818MHZ-12-2Z-T3 | Abracon | ABM8AIG | 14.31818 MHz | ±50ppm | ±20ppm | 12 pF |
| ABM8AIG-14.318MHZ-8-T | Abracon | ABM8AIG | 14.318 MHz | ±100ppm | ±50ppm | 8 pF |
| ABM8AIG-14.7456MHZ-12-2-T3 | Abracon | ABM8AIG | 14.7456 MHz | ±100ppm | ±20ppm | 12 pF |
| ABM8AIG-14.7456MHZ-12-2Z-T3 | Abracon | ABM8AIG | 14.7456 MHz | ±50ppm | ±20ppm | 12 pF |
| ABM8AIG-16.000MHZ-12-2-T3 | Abracon | ABM8AIG | 16 MHz | ±100ppm | ±20ppm | 12 pF |
| ABM8AIG-16.000MHZ-12-2Z-T | Abracon | ABM8AIG | 16 MHz | ±50ppm | ±20ppm | 12 pF |
| ABM8AIG-16.000MHZ-12-2Z-T3 | Abracon | ABM8AIG | 16 MHz | ±50ppm | ±20ppm | 12 pF |
| ABM8AIG-16.000MHZ-4-T | Abracon | ABM8AIG | 16 MHz | ±100ppm | ±30ppm | 18 pF |
| ABM8AIG-16.000MHZ-82Z-T | Abracon | ABM8AIG | 16 MHz | ±50ppm | ±20ppm | 8 pF |
| ABM8AIG-16.384MHZ-12-2-T3 | Abracon | ABM8AIG | 16.384 MHz | ±100ppm | ±20ppm | 12 pF |
| ABM8AIG-16.384MHZ-12-2Z-T3 | Abracon | ABM8AIG | 16.384 MHz | ±50ppm | ±20ppm | 12 pF |
| ABM8AIG-18.432MHZ-12-2-T3 | Abracon | ABM8AIG | 18.432 MHz | ±100ppm | ±20ppm | 12 pF |
| ABM8AIG-18.432MHZ-12-2Z-T3 | Abracon | ABM8AIG | 18.432 MHz | ±50ppm | ±20ppm | 12 pF |
| ABM8AIG-19.6608MHZ-12-2-T3 | Abracon | ABM8AIG | 19.6608 MHz | ±100ppm | ±20ppm | 12 pF |
| ABM8AIG-19.6608MHZ-12-2Z-T3 | Abracon | ABM8AIG | 19.6608 MHz | ±50ppm | ±20ppm | 12 pF |
| ABM8AIG-20.000MHZ-12-2-T3 | Abracon | ABM8AIG | 20 MHz | ±100ppm | ±20ppm | 12 pF |
| ABM8AIG-20.000MHZ-12-2Z-T3 | Abracon | ABM8AIG | 20 MHz | ±50ppm | ±20ppm | 12 pF |
| ABM8AIG-20.000MHZ-4-T | Abracon | ABM8AIG | 20 MHz | ±100ppm | ±30ppm | 18 pF |
| ABM8AIG-20.000MHZ-8-T | Abracon | ABM8AIG | 20 MHz | ±100ppm | ±50ppm | 8 pF |
| ABM8AIG-22.1184MHZ-12-2-T3 | Abracon | ABM8AIG | 22.1184 MHz | ±100ppm | ±20ppm | 12 pF |
| ABM8AIG-22.1184MHZ-12-2Z-T3 | Abracon | ABM8AIG | 22.1184 MHz | ±50ppm | ±20ppm | 12 pF |
| ABM8AIG-24.000MHZ-12-2-T3 | Abracon | ABM8AIG | 24 MHz | ±100ppm | ±20ppm | 12 pF |
| ABM8AIG-24.000MHZ-12-2Z-T3 | Abracon | ABM8AIG | 24 MHz | ±50ppm | ±20ppm | 12 pF |
| ABM8AIG-24.000MHZ-82Z-T | Abracon | ABM8AIG | 24 MHz | ±50ppm | ±20ppm | 8 pF |
| ABM8AIG-24.000MHZ-R40-4-T | Abracon | ABM8AIG | 24 MHz | ±100ppm | ±30ppm | 18 pF |
| ABM8AIG-24.576MHZ-12-2-T3 | Abracon | ABM8AIG | 24.576 MHz | ±100ppm | ±20ppm | 12 pF |
| ABM8AIG-24.576MHZ-12-2Z-T3 | Abracon | ABM8AIG | 24.576 MHz | ±50ppm | ±20ppm | 12 pF |
| ABM8AIG-25.000MHZ-12-2-T3 | Abracon | ABM8AIG | 25 MHz | ±100ppm | ±20ppm | 12 pF |
| ABM8AIG-25.000MHZ-12-2Z-T3 | Abracon | ABM8AIG | 25 MHz | ±50ppm | ±20ppm | 12 pF |
| ABM8AIG-25.000MHZ-8-T | Abracon | ABM8AIG | 25 MHz | ±100ppm | ±50ppm | 8 pF |
| ABM8AIG-25.000MHZ-R40-4-T | Abracon | ABM8AIG | 25 MHz | ±100ppm | ±30ppm | 18 pF |
| ABM8AIG-26.000MHZ-12-2-T3 | Abracon | ABM8AIG | 26 MHz | ±100ppm | ±20ppm | 12 pF |
| ABM8AIG-26.000MHZ-12-2Z-T3 | Abracon | ABM8AIG | 26 MHz | ±50ppm | ±20ppm | 12 pF |
| ABM8AIG-27.000MHZ-12-2-T3 | Abracon | ABM8AIG | 27 MHz | ±100ppm | ±20ppm | 12 pF |
| ABM8AIG-27.000MHZ-12-2Z-T3 | Abracon | ABM8AIG | 27 MHz | ±50ppm | ±20ppm | 12 pF |
| ABM8AIG-28.63636MHZ-12-2-T3 | Abracon | ABM8AIG | 28.63636 MHz | ±100ppm | ±20ppm | 12 pF |
| ABM8AIG-28.63636MHZ-12-2Z-T3 | Abracon | ABM8AIG | 28.63636 MHz | ±50ppm | ±20ppm | 12 pF |
| ABM8AIG-30.000MHZ-12-2-T3 | Abracon | ABM8AIG | 30 MHz | ±100ppm | ±20ppm | 12 pF |
| ABM8AIG-30.000MHZ-12-2Z-T3 | Abracon | ABM8AIG | 30 MHz | ±50ppm | ±20ppm | 12 pF |
| ABM8AIG-30.000MHZ-12-D2Z-T | Abracon | ABM8AIG | 30 MHz | ±50ppm | ±20ppm | 12 pF |
| ABM8AIG-32.000MHZ-12-2-T3 | Abracon | ABM8AIG | 32 MHz | ±100ppm | ±20ppm | 12 pF |
| ABM8AIG-32.000MHZ-12-2Z-T3 | Abracon | ABM8AIG | 32 MHz | ±50ppm | ±20ppm | 12 pF |
| ABM8AIG-32.000MHZ-12-D2Z-T | Abracon | ABM8AIG | 32 MHz | ±50ppm | ±20ppm | 12 pF |
| ABM8AIG-32.000MHZ-8-2Z-T | Abracon | ABM8AIG | 32 MHz | ±50ppm | ±20ppm | 18 pF |
| ABM8AIG-33.000MHZ-12-2-T3 | Abracon | ABM8AIG | 33 MHz | ±100ppm | ±20ppm | 12 pF |
| ABM8AIG-33.000MHZ-12-2Z-T3 | Abracon | ABM8AIG | 33 MHz | ±50ppm | ±20ppm | 12 pF |
| ABM8AIG-33.000MHZ-12-D2Z-T | Abracon | ABM8AIG | 33 MHz | ±50ppm | ±20ppm | 12 pF |
| ABM8AIG-40.000MHZ-12-2-T3 | Abracon | ABM8AIG | 40 MHz | ±100ppm | ±20ppm | 12 pF |
| ABM8AIG-40.000MHZ-12-2Z-T3 | Abracon | ABM8AIG | 40 MHz | ±50ppm | ±20ppm | 12 pF |
| ABM8AIG-40.000MHZ-12-D2Z-T | Abracon | ABM8AIG | 40 MHz | ±50ppm | ±20ppm | 12 pF |
| ABM8AIG-40.000MHZ-4-T | Abracon | ABM8AIG | 40 MHz | ±100ppm | ±30ppm | 18 pF |
| ABM8AIG-50.000MHZ-12-2-T3 | Abracon | ABM8AIG | 50 MHz | ±100ppm | ±20ppm | 12 pF |
| ABM8AIG-50.000MHZ-12-2Z-T3 | Abracon | ABM8AIG | 50 MHz | ±50ppm | ±20ppm | 12 pF |
