首頁歐美晶振康納溫菲爾德晶振CWX823-100.0M,7050mm晶振,ConnorWinfield高性能晶振

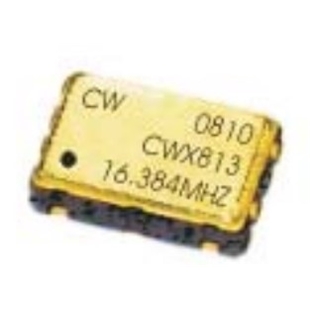

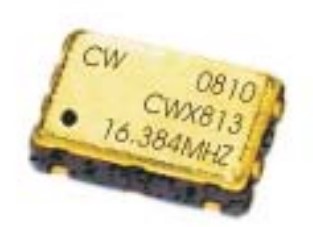

CWX823-100.0M,7050mm晶振,ConnorWinfield高性能晶振

規格型號：95773545
頻率：100MHz
尺寸：7.0x5.0mm
PDF
產品描述：CWX823-100.0M,7050mm晶振,ConnorWinfield高性能晶振,晶體振蕩器，美國進口晶振，ConnorWinfield晶振，康納溫菲爾德晶振，型號：CWX823，編碼為：CWX823-100.0M，電壓：3.3V，頻率為：100MHz，頻率穩定性：50ppm，工作...

CWX823-100.0M,7050mm晶振,ConnorWinfield高性能晶振,晶體振蕩器，美國進口晶振，ConnorWinfield晶振，康納溫菲爾德晶振，型號：CWX823，編碼為：CWX823-100.0M，電壓：3.3V，頻率為：100MHz，頻率穩定性：±50ppm，工作溫度范圍：-20℃至+70℃，CMOS輸出晶振，小體積晶振尺寸：7.0x5.0mm表面安裝包是設計為高密度安裝，時鐘振蕩器，四腳貼片晶振，石英晶振，有源晶振，石英晶體振蕩器，具有超小型晶振，輕薄型晶振，康納-溫菲爾德CWX8xx系列是一個符合RoHS標準的5.0x7.0mm表面安裝，固定頻率晶體控制振蕩器（XO）。設計用于需要緊密的頻率穩定性和低抖動的應用程序。應用于：智能家居晶振，無線網絡晶振，GPS導航晶振，物聯網晶振，醫療設備晶振等應用。

CWX823-100.0M,7050mm晶振,ConnorWinfield高性能晶振,晶體振蕩器,產品特點：
CWX8xx型-系列，5.0x7.0mm表面安裝封裝
3.3V或5.0V操作，CMOS輸出邏輯
可用頻率穩定性：+/-25ppm 或 +/-50ppm
溫度范圍：-20至70°C貼片晶振
低抖動<1pS RMS，三態啟用/禁用，膠帶和卷軸包裝

CWX823-100.0M,7050mm晶振,ConnorWinfield高性能晶振,晶體振蕩器,參數表

型號	CWX823
頻率	100 MHz
電源電壓	3.3V
輸入電壓	Vcc+0.5
輸出	CMOS
工作溫度	-20 °C ~ +70 °C
保存溫度	-55 °C ~ +125 °C

CWX823-100.0M,7050mm晶振,ConnorWinfield高性能晶振,晶體振蕩器,尺寸圖

原廠代碼	晶振廠家	型號	頻率
CWX823-012.0M	ConnorWinfield晶振	CWX823	12MHz
CWX823-024.0M	ConnorWinfield晶振	CWX823	24MHz
CWX823-050.0M	ConnorWinfield晶振	CWX823	50MHz
CWX823-032.768M	ConnorWinfield晶振	CWX823	32.768MHz
CWX823-018.432M	ConnorWinfield晶振	CWX823	18.432MHz
CWX823-049.152M	ConnorWinfield晶振	CWX823	49.152MHz
CWX823-016.0M	ConnorWinfield晶振	CWX823	16MHz
CWX823-012.288M	ConnorWinfield晶振	CWX823	12.288MHz
CWX823-020.0M	ConnorWinfield晶振	CWX823	20MHz
CWX823-027.0M	ConnorWinfield晶振	CWX823	27MHz
CWX823-033.333M	ConnorWinfield晶振	CWX823	33.333MHz
CWX823-100.0M	ConnorWinfield晶振	CWX823	100MHz
CWX823-001.544M	ConnorWinfield晶振	CWX823	1.544MHz
CWX823-040.0M	ConnorWinfield晶振	CWX823	40MHz
CWX823-033.0M	ConnorWinfield晶振	CWX823	33MHz
CWX823-004.0M	ConnorWinfield晶振	CWX823	4MHz
CWX823-025.0M	ConnorWinfield晶振	CWX823	25MHz
CWX823-001.8432M	ConnorWinfield晶振	CWX823	1.8432MHz
CWX823-064.0M	ConnorWinfield晶振	CWX823	64MHz
CWX823-125.0M	ConnorWinfield晶振	CWX823	125MHz
CWX823-156.25M	ConnorWinfield晶振	CWX823	156.25MHz
CWX823-010.0M	晶振訂制	CWX823	10MHz
CWX823-029.4912M	ConnorWinfield晶振	CWX823	29.4912MHz
CWX823-060.0M	ConnorWinfield晶振	CWX823	60MHz
CWX823-024.576M	ConnorWinfield晶振	CWX823	24.576MHz
CWX823-008.0M	ConnorWinfield晶振	CWX823	8MHz
CWX823-007.3728M	ConnorWinfield晶振	CWX823	7.3728MHz
CWX823-066.6666M	ConnorWinfield晶振	CWX823	66.6666MHz
CWX823-032.0M	ConnorWinfield晶振	CWX823	32MHz
CWX823-080.0M	ConnorWinfield晶振	CWX823	80MHz
CWX823-016.384M	ConnorWinfield晶振	CWX823	16.384MHz
CWX823-030.0M	ConnorWinfield晶振	CWX823	30MHz
CWX823-044.736M	ConnorWinfield晶振	CWX823	44.736MHz
CWX823-003.6864M	ConnorWinfield晶振	CWX823	3.6864MHz
CWX823-014.31818M	ConnorWinfield晶振	CWX823	14.31818MHz
CWX823-015.36M	ConnorWinfield晶振	CWX823	15.36MHz
CWX823-019.44M	ConnorWinfield晶振	CWX823	19.44MHz
CWX823-020.48M	ConnorWinfield晶振	CWX823	20.48MHz
CWX823-045.0M	ConnorWinfield晶振	CWX823	45MHz
CWX823-072.0M	ConnorWinfield晶振	CWX823	72MHz
