規格型號：99488144
頻率：12 MHz

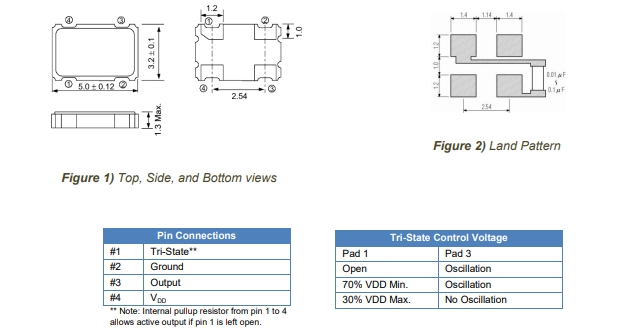

尺寸：5.00mm x 3.20mm
PDF
產品描述：ECS-3963-120-BN-TR,3.3V有源振蕩器,5032石英貼片晶振,兼容多數PCB板的布局需求,可直接替換同封裝規格的其他振蕩器,降低設備升級或換料的設計成本,保持了微型化優勢,可在空間受限的高頻電路中靈活布局,3.3V供電則降低...

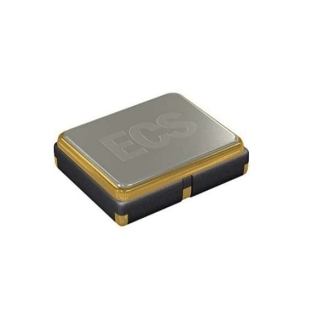

ECS-3963-120-BN-TR,3.3V有源振蕩器,5032石英貼片晶振

ECS-3963-120-BN-TR以"高可靠性"為核心亮點,通過3.3V有源設計,5032貼片晶振封裝與精密制造工藝的結合,滿足關鍵設備的時鐘需求.3.3V供電穩定,避免電壓波動對振蕩電路的影響,有源設計減少外部環境對信號輸出的干擾,石英晶體則確保長期運行中的頻率穩定性,有效降低因元件老化導致的頻率漂移風險.該產品適配醫療監護儀,航空航天輔助設備,應急通信終端等對可靠性要求極高的場景,每顆振蕩器均經過多輪性能測試(包括電壓穩定性,溫度適應性,抗干擾性),為關鍵設備的安全穩定運行筑牢時鐘基準防線.

ECS-3963-120-BN-TR,3.3V有源振蕩器,5032石英貼片晶振

原廠型號 Originalmodel：	ECS-3963-120-BN-TR	品牌brand：	ECS晶振
Manufacturer品牌	ECS晶振	OperatingTemperature溫度	-40°C ~ 85°C
Series型號	ECS-3963	Current-Supply(Max)	10mA
Type類型	XO無線網絡應用	PackageHeight高度	1.3mm
Frequency頻率	12 MHz	Termination 腳位	4-pad
輸出方式 Output：	HCMOS	PackageType 封裝類型	4-SMD
Voltage-Supply電壓	3.3V	Packaging 包裝	TapeandReel
FrequencyStability頻率穩定度	±50ppm	安裝方式 Installation：	Surfacemount
Size/Dimension尺寸	5.00mm x 3.20mm	最小包裝數MPQ：	1000

ECS-3963-120-BN-TR,3.3V有源振蕩器,5032石英貼片晶振

ECS-2333-160-BN-TR	ECS晶振	ECS-2333	XO	16 MHz	HCMOS	3.3V	±50ppm
ECS-2033-250-BN	ECS晶振	ECS-2033	XO	25 MHz	CMOS	3.3V	±50ppm
ECS-2333-500-BN-TR	ECS晶振	ECS-2333	XO	50 MHz	HCMOS	3.3V	±50ppm
ECS-2018-270-BN	ECS晶振	ECS-2018	XO	27 MHz	HCMOS	1.8V	±50ppm
ECS-2018-240-BN-TR3	ECS晶振	ECS-2018	XO	24 MHz	HCMOS	1.8V	±50ppm
ECS-2033-500-BN	ECS晶振	ECS-2033	XO	50 MHz	CMOS	3.3V	±50ppm
ECS-3963-250-BN-TR	ECS晶振	ECS-3963-BN	XO	25 MHz	HCMOS	3.3V	±50ppm
ECS-2033-240-BN	ECS晶振	ECS-2033	XO	24 MHz	CMOS	3.3V	±50ppm
ECS-2033-120-BN	ECS晶振	ECS-2033	XO	12 MHz	CMOS	3.3V	±50ppm
ECS-327MVATX-2-CN-TR3	ECS晶振	ECS-327MVATX	XO	32.768 kHz	CMOS	1.6V ~ 3.6V	±25ppm
ECS-327MVATX-3-CN-TR	ECS晶振	ECS-327MVATX	XO	32.768 kHz	CMOS	1.6V ~ 3.6V	±25ppm
ECS-3225MV-260-CN-TR	ECS晶振	ECS-3225MV	XO	26 MHz	HCMOS	1.62V ~ 3.63V	±25ppm
ECS-3225MV-240-BN-TR	ECS晶振	ECS-3225MV	XO	24 MHz	HCMOS	1.62V ~ 3.63V	±50ppm
ECS-2018-250-BN	ECS晶振	ECS-2018	XO	25 MHz	HCMOS	1.8V	±50ppm
ECS-3225MV-500-CN-TR	ECS晶振	ECS-3225MV	XO	50 MHz	HCMOS	1.62V ~ 3.63V	±25ppm
ECS-3225MV-120-BN-TR	ECS晶振	ECS-3225MV	XO	12 MHz	HCMOS	1.62V ~ 3.63V	±50ppm
ECS-3225MV-250-CN-TR3	ECS晶振	ECS-3225MV	XO	25 MHz	HCMOS	1.8V ~ 3.3V	±25ppm
ECS-3225MV-160-BN-TR	ECS晶振	ECS-3225MV	XO	16 MHz	HCMOS	1.62V ~ 3.63V	±50ppm
ECS-3225MV-500-BN-TR	ECS晶振	ECS-3225MV	XO	50 MHz	HCMOS	1.62V ~ 3.63V	±50ppm
ECS-3225MV-160-CN-TR	ECS晶振	ECS-3225MV	XO	16 MHz	HCMOS	1.62V ~ 3.63V	±25ppm
ECS-2520MV-160-CN-TR	ECS晶振	ECS-2520MV	XO	16 MHz	HCMOS	1.6V ~ 3.6V	±25ppm
ECS-2520MV-250-CN-TR	ECS晶振	ECS-2520MV	XO	25 MHz	HCMOS	1.6V ~ 3.6V	±25ppm
ECS-2520MV-250-BN-TR	ECS晶振	ECS-2520MV	XO	25 MHz	HCMOS	1.6V ~ 3.6V	±50ppm
ECS-2520MV-240-BN-TR	ECS晶振	ECS-2520MV	XO	24 MHz	HCMOS	1.6V ~ 3.6V	±50ppm
ECS-2520MV-120-BL-TR	ECS晶振	ECS-2520MV	XO	12 MHz	HCMOS	1.6V ~ 3.6V	±50ppm
ECS-5032MV-250-CN-TR	ECS晶振	ECS-5032MV	XO	25 MHz	HCMOS	1.6V ~ 3.6V	±25ppm
ECS-2520MV-480-BN-TR	ECS晶振	ECS-2520MV	XO	48 MHz	HCMOS	1.6V ~ 3.6V	±50ppm
ECS-2520MV-080-CN-TR	ECS晶振	ECS-2520MV	XO	8 MHz	HCMOS	1.6V ~ 3.6V	±25ppm
ECS-2033-240-BN-TR3	ECS晶振	ECS-2033	XO	24 MHz	CMOS	3.3V	±50ppm
ECS-2033-250-BN-TR3	ECS晶振	ECS-2033	XO	25 MHz	CMOS	3.3V	±50ppm
ECS-2520MV-500-BL-TR	ECS晶振	ECS-2520MV	XO	50 MHz	HCMOS	1.6V ~ 3.6V	±50ppm
ECS-2520MV-480-CN-TR	ECS晶振	ECS-2520MV	XO	48 MHz	HCMOS	1.6V ~ 3.6V	±25ppm
ECS-3225MV-250-CN-TR	ECS晶振	ECS-3225MV	XO	25 MHz	HCMOS	1.62V ~ 3.63V	±25ppm
ECS-5032MV-240-CN-TR	ECS晶振	ECS-5032MV	XO	24 MHz	HCMOS	1.6V ~ 3.6V	±25ppm
ECS-3953M-480-B-TR	ECS晶振	ECS-3953M	XO	48 MHz	HCMOS	3.3V	±50ppm
ECS-5032MV-200-CN-TR	ECS晶振	ECS-5032MV	XO	20 MHz	HCMOS	1.6V ~ 3.6V	±25ppm
ECS-2520MVQ-250-CN-TR	ECS晶振	ECS-2520MVQ	XO	25 MHz	HCMOS	1.6V ~ 3.6V	±25ppm
ECS-5032MV-500-CN-TR	ECS晶振	ECS-5032MV	XO	50 MHz	HCMOS	1.6V ~ 3.6V	±25ppm
ECS-3963-040-BN-TR	ECS晶振	ECS-3963-BN	XO	4 MHz	HCMOS	3.3V	±50ppm
ECS-2520MVLC-075-BN-TR	ECS晶振	ECS-2520MVLC	XO	7.5728 MHz	CMOS	1.6V ~ 3.6V	±50ppm
ECS-2520MVLC-081.92-BN-TR	ECS晶振	ECS-2520MVLC	XO	8.192 MHz	CMOS	1.6V ~ 3.6V	±50ppm
ECS-2520MVLC-120-CN-TR	ECS晶振	ECS-2520MVLC	XO	12 MHz	CMOS	1.6V ~ 3.6V	±25ppm
ECS-2520MVLC-271.2-BN-TR	ECS晶振	ECS-2520MVLC	XO	27.12 MHz	CMOS	1.6V ~ 3.6V	±50ppm
ECS-2520MVLC-049-BN-TR	ECS晶振	ECS-2520MVLC	XO	4.9152 MHz	CMOS	1.6V ~ 3.6V	±50ppm
ECS-2520MVLC-250-CN-TR	ECS晶振	ECS-2520MVLC	XO	25 MHz	CMOS	1.6V ~ 3.6V	±25ppm
ECS-3951M-160-B-TR	ECS晶振	ECS-3951M	XO	16 MHz	HCMOS	5V	±50ppm
ECS-5032MV-122.8-CN-TR	ECS晶振	ECS-5032MV	XO	12.288 MHz	HCMOS	1.6V ~ 3.6V	±25ppm
ECS-327MVATX-7-CN-TR	ECS晶振	ECS-327MVATX	XO	32.768 kHz	CMOS	1.6V ~ 3.6V	±25ppm
ECS-5032MV-1250-CN-TR	ECS晶振	ECS-5032MV	XO	125 MHz	HCMOS	1.6V ~ 3.6V	±25ppm
ECS-2018-143-BN	ECS晶振	ECS-2018	XO	14.31818 MHz	HCMOS	1.8V	±50ppm
ECS-327ATQMV-AS-TR	ECS晶振	ECS-327ATQMV	XO	32.768 kHz	CMOS	1.62V ~ 3.63V	±100ppm
ECS-3963-120-BN-TR	ECS晶振	ECS-3963	XO	12 MHz	HCMOS	3.3V	±50ppm
ECS-3225MVQ-1000-CN-TR	ECS晶振	ECS-3225MVQ	XO	100 MHz	HCMOS	1.7V ~ 3.6V	±25ppm
ECS-3953M-250-B-TR	ECS晶振	ECS-3953M	XO	25 MHz	HCMOS	3.3V	±50ppm
ECS-3963-250-AU-TR	ECS晶振	ECS-3963	XO	25 MHz	HCMOS	3.3V	±100ppm
ECS-3953M-500-BN-TR	ECS晶振	ECS-3953M-BN	XO	50 MHz	HCMOS	3.3V	±50ppm
ECS-3951M-160-BN-TR	ECS晶振	ECS-3951M-BN	XO	16 MHz	HCMOS	5V	±50ppm
ECS-3953M-250-BN-TR	ECS晶振	ECS-3953M-BN	XO	25 MHz	HCMOS	3.3V	±50ppm
ECS-3953M-120-BN-TR	ECS晶振	ECS-3953M-BN	XO	12 MHz	HCMOS	3.3V	±50ppm
ECS-3953M-018-BN-TR	ECS晶振	ECS-3953M-BN	XO	1.8432 MHz	HCMOS	3.3V	±50ppm
