針對各種車載電子設備對石英晶振在高溫、抗振動等方面的更高要求，愛普生可以提供全面的符合AEC-Q200/100技術標準的汽車用車規晶振。

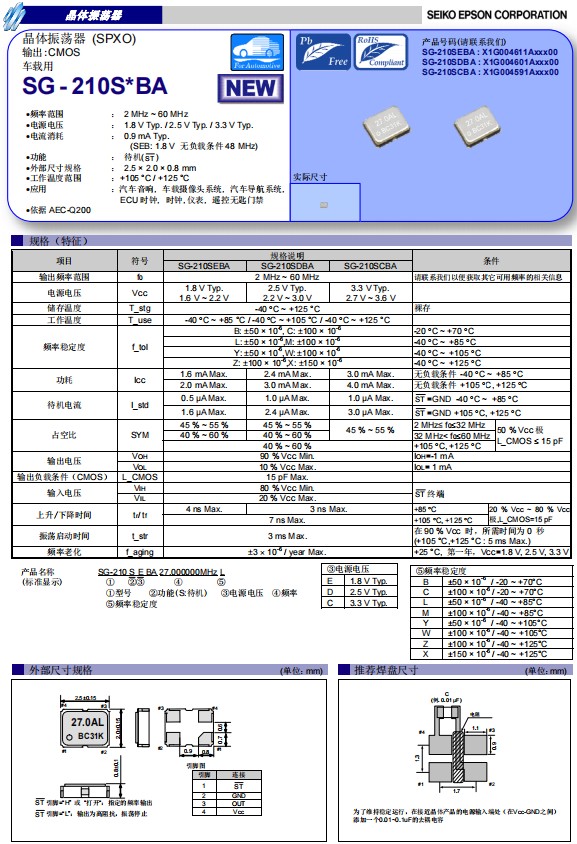

日本愛普生晶振推出汽車電子專用晶振SG-210SCBA，是一款CMOS輸出石英晶體振蕩器，頻率范圍:2MHz至60MHz，電源電壓(典型值):1.8V/2.5V/3.3V可選，電流消耗:0.9mATyp.(SEB:1.8V無負載條件48MHz)，功能:待機(ST)，工作溫度范圍:-40℃至+85℃/+105℃/+125℃，小體積晶振規格:2.5x2.0x0.9mm，四腳貼片晶振，緊湊的結構和小體積使產品適用于微空間的電路設計。該產品具有超小型，輕薄型，低電源電壓，低抖動，低功耗，耐高溫，耐熱、耐振、耐沖擊等優良的耐環境特性。應用于：汽車音響，車載攝像頭系統，汽車導航系統，汽車空調系統，ECU時鐘，時鐘，儀表，遙控無匙門禁等，符合AEC-Q200標準，是汽車電子應用中的理想選擇。
SG-210SCBA晶體振蕩器X1G004591A02300特別適用于汽車空調系統,X1G004591A04100,車載專用晶振

愛普生晶振	型號	頻率	尺寸	輸出波
X1G004591A00100	SG-210SCBA	27.000000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A00200	SG-210SCBA	49.090000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A00300	SG-210SCBA	40.000000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A00400	SG-210SCBA	8.000000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A00600	SG-210SCBA	37.007000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A00700	SG-210SCBA	27.000000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A00900	SG-210SCBA	20.000000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A01000	SG-210SCBA	33.333000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A01300	SG-210SCBA	25.000000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A01700	SG-210SCBA	4.000000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A02000	SG-210SCBA	20.000000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A02100	SG-210SCBA	33.333300MHz	2.50x2.00x0.90mm	CMOS
X1G004591A02300	SG-210SCBA	16.000000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A02400	SG-210SCBA	25.000000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A02500	SG-210SCBA	25.000000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A02700	SG-210SCBA	33.300000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A02800	SG-210SCBA	48.000000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A03100	SG-210SCBA	25.000000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A03300	SG-210SCBA	10.000000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A03600	SG-210SCBA	33.333300MHz	2.50x2.00x0.90mm	CMOS
X1G004591A03700	SG-210SCBA	14.745600MHz	2.50x2.00x0.90mm	CMOS
X1G004591A03800	SG-210SCBA	37.007000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A04000	SG-210SCBA	24.000000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A04100	SG-210SCBA	16.000000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A04900	SG-210SCBA	24.576000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A05000	SG-210SCBA	22.579200MHz	2.50x2.00x0.90mm	CMOS
X1G004591A05100	SG-210SCBA	14.745600MHz	2.50x2.00x0.90mm	CMOS
X1G004591A05200	SG-210SCBA	24.576000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A05800	SG-210SCBA	48.000000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A05900	SG-210SCBA	10.000000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A06700	SG-210SCBA	27.000000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A06800	SG-210SCBA	12.288000MHz	2.50x2.00x0.90mm	CMOS

X1G004591A07200	SG-210SCBA	8.000000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A07300	SG-210SCBA	30.000000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A07700	SG-210SCBA	7.904000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A07800	SG-210SCBA	12.288000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A08100	SG-210SCBA	40.000000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A08200	SG-210SCBA	16.000000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A08400	SG-210SCBA	24.576000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A08500	SG-210SCBA	16.666600MHz	2.50x2.00x0.90mm	CMOS
X1G004591A08600	SG-210SCBA	19.200000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A08700	SG-210SCBA	12.000000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A08800	SG-210SCBA	45.000000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A08900	SG-210SCBA	40.000000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A09000	SG-210SCBA	13.333000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A09100	SG-210SCBA	11.289600MHz	2.50x2.00x0.90mm	CMOS
X1G004591A09200	SG-210SCBA	12.000000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A09400	SG-210SCBA	6.780000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A09500	SG-210SCBA	24.545452MHz	2.50x2.00x0.90mm	CMOS
X1G004591A09700	SG-210SCBA	48.000000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A09800	SG-210SCBA	11.250000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A09900	SG-210SCBA	12.000000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A10000	SG-210SCBA	16.666600MHz	2.50x2.00x0.90mm	CMOS
X1G004591A10100	SG-210SCBA	33.330000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A10200	SG-210SCBA	10.240000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A10400	SG-210SCBA	24.000000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A10500	SG-210SCBA	33.333000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A10600	SG-210SCBA	11.289600MHz	2.50x2.00x0.90mm	CMOS
X1G004591A10900	SG-210SCBA	6.144000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A11000	SG-210SCBA	3.579000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A11100	SG-210SCBA	49.500000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A11400	SG-210SCBA	26.000000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A11500	SG-210SCBA	33.330000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A11800	SG-210SCBA	6.144000MHz	2.50x2.00x0.90mm	CMOS
X1G004591A11900	SG-210SCBA	4.000000MHz	2.50x2.00x0.90mm	CMOS

SG-210SCBA晶體振蕩器X1G004591A02300特別適用于汽車空調系統,X1G004591A04100,車載專用晶振
近幾年互聯網高速發展，隨著5G時代的到來，智能汽車的發展也越發的迅速。汽車電子對晶振的要求比消費類的科技數碼產品高的多，特別是耐高溫這一塊，汽車電子中的晶振最好能在高溫和低溫狀態下正常工作。
