愛普生晶振公司1942年成立以來一直活躍在晶振領域,注重自主品牌的建設,掌握自主研制,定制,實現全套的晶振工藝技術流程,擁有晶體振蕩器技術的自主技術專利和產品線,能夠為客戶提供全國產化晶振解決方案.

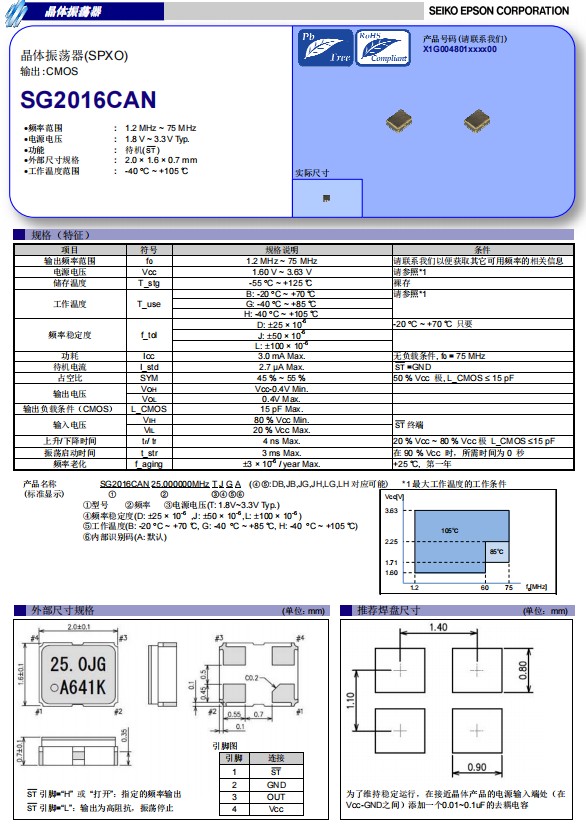

日本進口愛普生晶振SG2016CAN，是一款小體積晶振尺寸2.0x1.6mm石英晶體振蕩器(SPXO)，支持CMOS輸出電平，四腳貼片晶振，有源晶振，1.6V至3.63V的寬工作電壓和寬工作溫度范圍從-40℃到85℃，此外，最高工作溫度可達105℃。具有超小型，輕薄型，低抖動，低功耗，低損耗，低耗能，低電流消耗等特點，非常適合物聯網、可穿戴設備、醫療、工業自動化等各種應用。
SG2016CAN有源晶振X1G004801006000非常適合物聯網應用,X1G004801007700,超小型晶振

產品編碼	型號	貼片晶振	尺寸	輸出波
X1G004801000200	SG2016CAN	24.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801000300	SG2016CAN	26.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801000700	SG2016CAN	12.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801001200	SG2016CAN	25.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801001300	SG2016CAN	50.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801001400	SG2016CAN	16.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801001800	SG2016CAN	20.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801002000	SG2016CAN	48.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801002100	SG2016CAN	27.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801002400	SG2016CAN	25.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801002600	SG2016CAN	33.333300MHz	2.00x1.60x0.70mm	CMOS
X1G004801002700	SG2016CAN	10.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801002800	SG2016CAN	50.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801002900	SG2016CAN	10.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801003000	SG2016CAN	4.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801003100	SG2016CAN	24.576000MHz	2.00x1.60x0.70mm	CMOS
X1G004801003500	SG2016CAN	25.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801003600	SG2016CAN	40.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801003900	SG2016CAN	26.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801004000	SG2016CAN	24.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801004400	SG2016CAN	12.288000MHz	2.00x1.60x0.70mm	CMOS
X1G004801004500	SG2016CAN	8.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801004600	SG2016CAN	8.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801004900	SG2016CAN	4.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801005000	SG2016CAN	12.000000MHz	2.00x1.60x0.70mm	CMOS

X1G004801005100	SG2016CAN	12.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801005200	SG2016CAN	12.288000MHz	2.00x1.60x0.70mm	CMOS
X1G004801005300	SG2016CAN	12.288000MHz	2.00x1.60x0.70mm	CMOS
X1G004801005400	SG2016CAN	14.745600MHz	2.00x1.60x0.70mm	CMOS
X1G004801005500	SG2016CAN	14.745600MHz	2.00x1.60x0.70mm	CMOS
X1G004801005600	SG2016CAN	16.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801005700	SG2016CAN	20.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801005800	SG2016CAN	20.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801005900	SG2016CAN	24.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801006000	SG2016CAN	24.576000MHz	2.00x1.60x0.70mm	CMOS
X1G004801006100	SG2016CAN	27.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801006200	SG2016CAN	32.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801006300	SG2016CAN	32.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801006400	SG2016CAN	33.330000MHz	2.00x1.60x0.70mm	CMOS
X1G004801006500	SG2016CAN	33.330000MHz	2.00x1.60x0.70mm	CMOS
X1G004801006600	SG2016CAN	33.333300MHz	2.00x1.60x0.70mm	CMOS
X1G004801006700	SG2016CAN	40.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801006800	SG2016CAN	48.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801006900	SG2016CAN	48.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801007000	SG2016CAN	50.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801007100	SG2016CAN	72.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801007200	SG2016CAN	72.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801007300	SG2016CAN	72.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801007600	SG2016CAN	32.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801007700	SG2016CAN	26.000000MHz	2.00x1.60x0.70mm	CMOS
