- 規格型號：29012295
- 頻率：233.25MHz
- 尺寸：7050mm
- 產品描述：Skyworks有源晶體,航空航天晶振,530FC233M250DGR晶振，美國思佳訊晶振公司，有源晶振，貼片晶振，石英晶振，高精度晶振，進口晶振，美國晶振，高品質晶振，低損耗晶振，低相噪晶振，低抖動晶振，航空航天晶振，無人機...

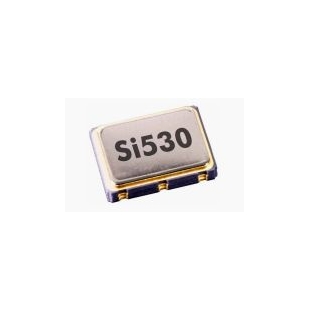

Skyworks有源晶體,航空航天晶振,530FC233M250DGR晶振
Skyworks有源晶體,航空航天晶振,530FC233M250DGR晶振，美國思佳訊晶振公司，有源晶振，貼片晶振，石英晶振，高精度晶振，進口晶振，美國晶振，高品質晶振，低損耗晶振，低相噪晶振，低抖動晶振，航空航天晶振，無人機晶振，航天飛機晶振，Si530 XO采用Skyworks Solutions先進的DSPLL®電路，在高頻下提供低抖動時鐘。Si530可提供從10到945 MHz的任意速率輸出頻率，并可選擇頻率到1400 MHz。不同于傳統的XO，每個輸出頻率需要不同的晶體，Si530使用一個固定晶體來提供寬范圍的輸出頻率。這種基于IC的方法允許晶體諧振器提供卓越的頻率穩定性和可靠性。此外，DSPLL時鐘合成提供了優越的電源噪聲抑制，簡化了在通信系統中通常存在的噪聲環境中產生低抖動時鐘的任務。基于Si530 IC的XO可在工廠配置，適用于各種用戶規格，包括頻率，電源電壓，輸出格式和溫度穩定性。
Skyworks有源晶體,航空航天晶振,530FC233M250DGR晶振
| 參數 | 標志 | 條件 | 最小值 | 典型的 | 最大值 | 單位 |
| 電源電壓 | VDD | 3.3 V option | 2.97 | 3.3 | 3.63 | V |
| 2.5 V option | 2.25 | 2.5 | 2.75 | V | ||
| 1.8 V option | 1.71 | 1.8 | 1.89 | V | ||
| 供應電流 | IDD |
Output enabled LVPECL CML LVDS CMOS |
— — — — |
111 99 90 81 |
121 108 98 88 |
mA |
| Tristate mode | — | 60 | 75 | mA | ||
| 輸出啟用(OE)2 | VIH | 0.75 x VDD | — | — | V | |
| VIL | — | — | 0.5 | V | ||
| 工作溫度范圍 | TA | –40 | — | 85 | ºC | |
| 標稱頻率 | fO | LVPECL/LVDS/CML | 10 | — | 945 | MHz |
| CMOS | 10 | — | 160 | MHz | ||
| 最初的準確性 | fi | Measured at +25 °C at time of shipping | — | ±1.5 | — | ppm |
| 溫度穩定度 |
–7 –20 –50 |
— — — |
+7 +20 +50 |
ppm | ||
| 老化 | fa | Frequency drift over first year | — | — | ±3 | ppm |
| Frequency drift over 20 year life | — | — | ±10 | ppm |
Skyworks有源晶體,航空航天晶振,530FC233M250DGR晶振

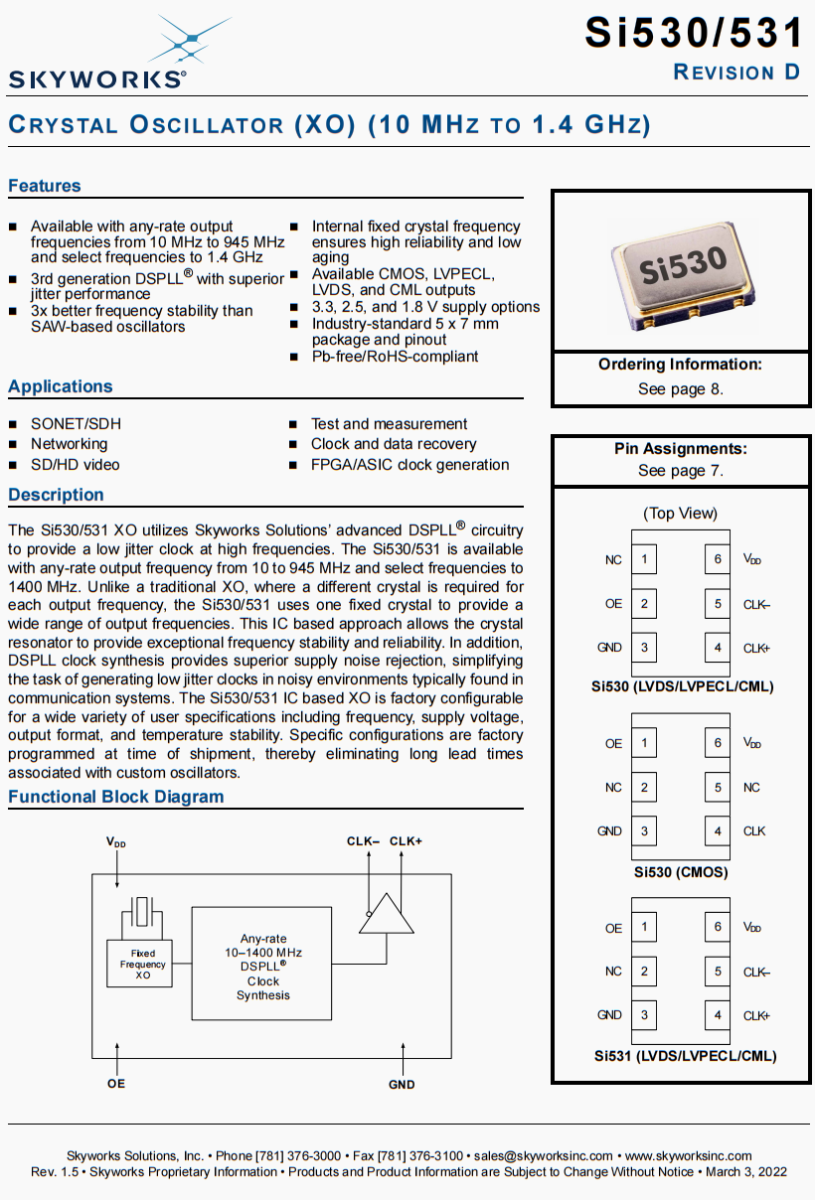

.png)

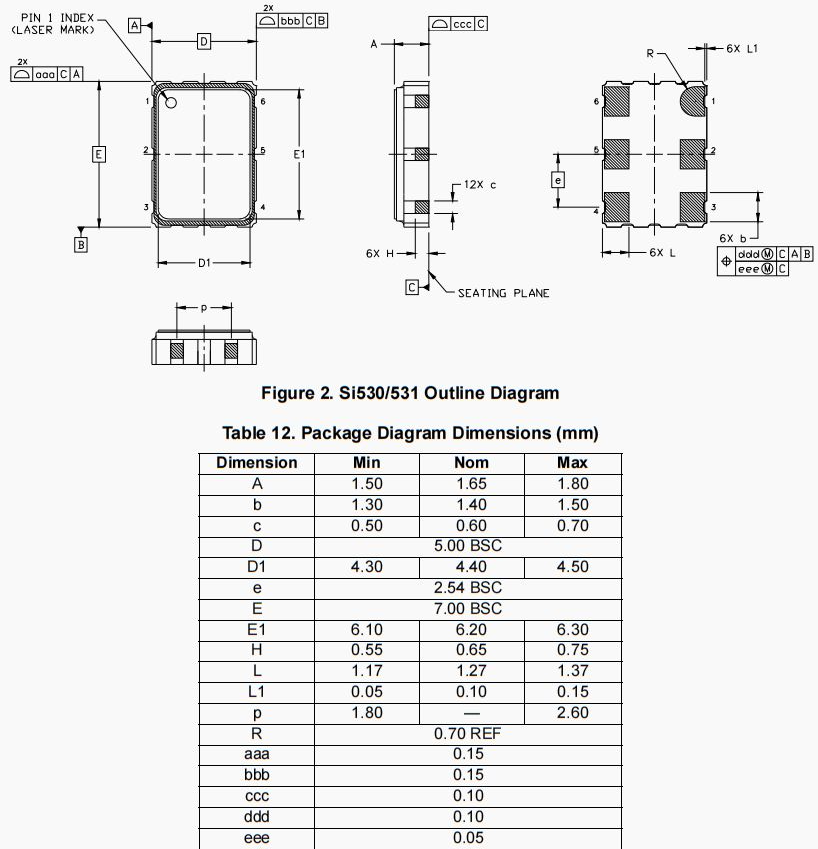

.png)

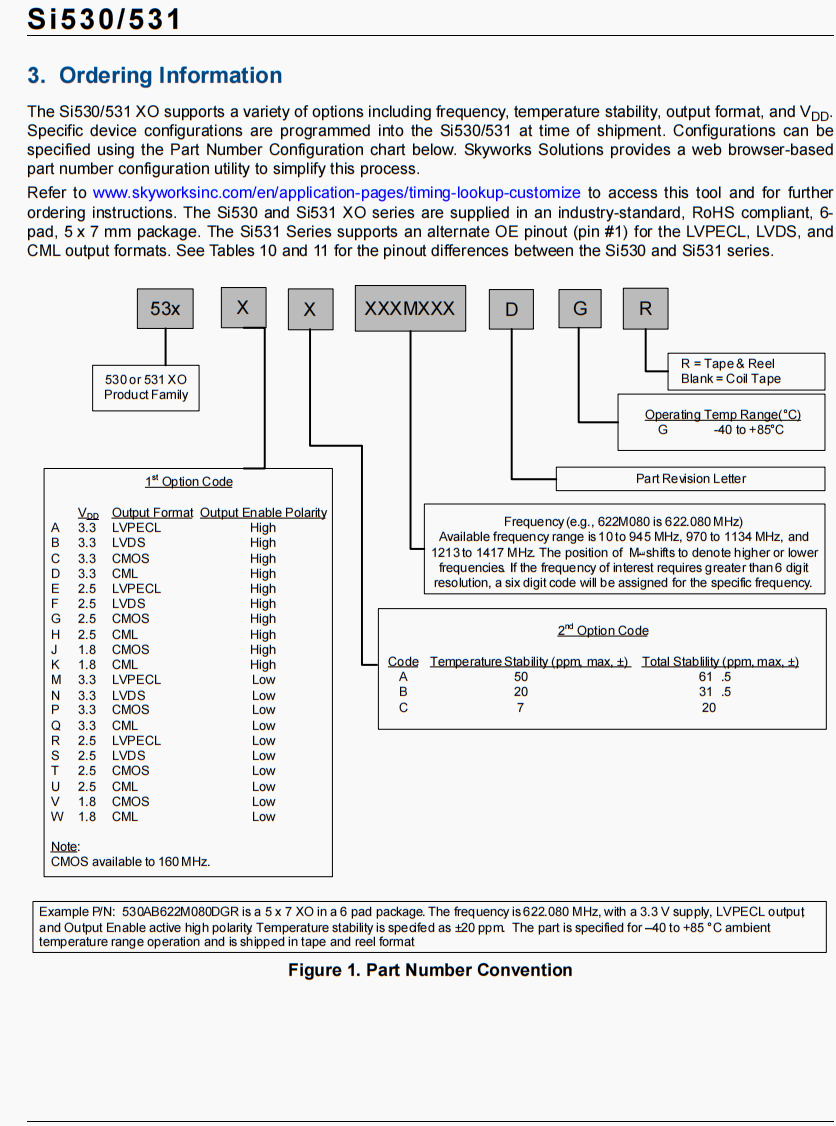

| SKYWORKS原廠編碼 | 生產商 | 型號 | 頻率 | 輸出 | 電源電壓 | 頻率穩定度 |
| 530BB125M000DG | Skyworks晶振 | Si530 | 125 MHz | LVDS | 3.3V | ±20ppm |
| 530BA125M000DG | Skyworks晶振 | Si530 | 125 MHz | LVDS | 3.3V | ±50ppm |
| 530CA25M0000DG | Skyworks晶振 | Si530 | 25 MHz | CMOS | 3.3V | ±50ppm |
| 530CA28M6000DG | Skyworks晶振 | Si530 | 28.6 MHz | CMOS | 3.3V | ±50ppm |
| 530GB25M0000DG | Skyworks晶振 | Si530 | 25 MHz | CMOS | 2.5V | ±20ppm |
| 530FC200M000DG | Skyworks晶振 | Si530 | 200 MHz | LVDS | 2.5V | ±7ppm |
| 530EC125M000DG | Skyworks晶振 | Si530 | 125 MHz | LVPECL | 2.5V | ±7ppm |
| 530BC100M000DG | Skyworks晶振 | Si530 | 100 MHz | LVDS | 3.3V | ±20ppm |
| 530AC622M080DGR | Skyworks晶振 | Si530 | 622.08 MHz | LVPECL | 3.3V | ±7ppm |
| 530CB20M0000DG | Skyworks晶振 | Si530 | 20 MHz | CMOS | 3.3V | ±20ppm |
| 530BC114M285DG | Skyworks晶振 | Si530 | 114.285 MHz | LVDS | 3.3V | ±7ppm |
| 530CC19M2000DG | Skyworks晶振 | Si530 | 19.2 MHz | CMOS | 3.3V | ±7ppm |
| 530CA26M0000DG | Skyworks晶振 | Si530 | 26 MHz | CMOS | 3.3V | ±50ppm |
| 530EB50M0000DGR | Skyworks晶振 | Si530 | 50 MHz | LVPECL | 2.5V | ±20ppm |
| 530EA312M500DG | Skyworks晶振 | Si530 | 312.5 MHz | LVPECL | 2.5V | ±50ppm |
| 530FC311M040DG | Skyworks晶振 | Si530 | 311.04 MHz | LVDS | 2.5V | ±7ppm |
| 530FC233M250DGR | Skyworks晶振 | Si530 | 233.25 MHz | LVDS | 2.5V | ±7ppm |
| 530AB25M0000DG | Skyworks晶振 | Si530 | 25 MHz | LVPECL | 3.3V | ±20ppm |
| 530FB125M000DG | Skyworks晶振 | Si530 | 125 MHz | LVDS | 2.5V | ±20ppm |
| 530EB121M109DG | Skyworks晶振 | Si530 | 121.109 MHz | LVPECL | 2.5V | ±20ppm |
| 530AC125M000DG | Skyworks晶振 | Si530 | 125 MHz | LVPECL | 3.3V | ±7ppm |
| 530BC125M000DG | Skyworks晶振 | Si530 | 125 MHz | LVDS | 3.3V | ±7ppm |
| 530FC125M000DG | Skyworks晶振 | Si530 | 125 MHz | LVDS | 2.5V | ±7ppm |
| 530BA156M250DG | Skyworks晶振 | Si530 | 156.25 MHz | LVDS | 3.3V | ±50ppm |
| 530FA200M000DG | Skyworks晶振 | Si530 | 200 MHz | LVDS | 2.5V | ±50ppm |
| 530AC156M250DG | Skyworks晶振 | Si530 | 156.25 MHz | LVPECL | 3.3V | ±7ppm |
| 530BC156M250DG | Skyworks晶振 | Si530 | 156.25 MHz | LVDS | 3.3V | ±7ppm |
| 530FC156M250DG | Skyworks晶振 | Si530 | 156.25 MHz | LVDS | 2.5V | ±7ppm |
| 530AC200M000DG | Skyworks晶振 | Si530 | 200 MHz | LVPECL | 3.3V | ±7ppm |
| 530BC148M500DG | Skyworks晶振 | Si530 | 148.5 MHz | LVDS | 3.3V | ±7ppm |
| 530FB100M000DG | Skyworks晶振 | Si530 | 100 MHz | LVDS | 2.5V | ±20ppm |
| 530CB50M0000DG | Skyworks晶振 | Si530 | 50 MHz | CMOS | 3.3V | ±20ppm |
| 530FA156M250DG | Skyworks晶振 | Si530 | 156.25 MHz | LVDS | 2.5V | ±50ppm |
| 530FB200M000DG | Skyworks晶振 | Si530 | 200 MHz | LVDS | 2.5V | ±20ppm |
| 530FC50M0000DG | Skyworks晶振 | Si530 | 50 MHz | LVDS | 2.5V | ±7ppm |
| 530AC250M000DG | Skyworks晶振 | Si530 | 250 MHz | LVPECL | 3.3V | ±7ppm |
| 530BC622M080DG | Skyworks晶振 | Si530 | 622.08 MHz | LVDS | 3.3V | ±7ppm |
| 530CB50M0000DGR | Skyworks晶振 | Si530 | 50 MHz | CMOS | 3.3V | ±20ppm |
| 530BC125M000DGR | Skyworks晶振 | Si530 | 125 MHz | LVDS | 3.3V | ±7ppm |
| 530AC155M520DGR | Skyworks晶振 | Si530 | 155.52 MHz | LVPECL | 3.3V | ±7ppm |
| 530BB156M250DG | Skyworks晶振 | Si530 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 530EC156M250DG | Skyworks晶振 | Si530 | 156.25 MHz | LVPECL | 2.5V | ±7ppm |
| 530BC187M500DG | Skyworks晶振 | Si530 | 187.5 MHz | LVDS | 3.3V | ±7ppm |
| 530BC200M000DG | Skyworks晶振 | Si530 | 200 MHz | LVDS | 3.3V | ±7ppm |
| 530BB100M000DG | Skyworks晶振 | Si530 | 100 MHz | LVDS | 3.3V | ±20ppm |
| 530BC312M500DG | Skyworks晶振 | Si530 | 312.5 MHz | LVDS | 3.3V | ±7ppm |
| 530BC250M000DG | Skyworks晶振 | Si530 | 250 MHz | LVDS | 3.3V | ±7ppm |
| 530AC106M250DG | Skyworks晶振 | Si530 | 106.25 MHz | LVPECL | 3.3V | ±7ppm |
| 530FC106M250DG | Skyworks晶振 | Si530 | 106.25 MHz | LVDS | 2.5V | ±7ppm |
| 530EB50M0000DG | Skyworks晶振 | Si530 | 50 MHz | LVPECL | 2.5V | ±20ppm |
| 530AA156M250DG | Skyworks晶振 | Si530 | 156.25 MHz | LVPECL | 3.3V | ±50ppm |
| 530EC148M500DG | Skyworks晶振 | Si530 | 148.5 MHz | LVPECL | 2.5V | ±7ppm |
| 530FC148M500DG | Skyworks晶振 | Si530 | 148.5 MHz | LVDS | 2.5V | ±7ppm |
| 530AB156M250DG | Skyworks晶振 | Si530 | 156.25 MHz | LVPECL | 3.3V | ±20ppm |
| 530AC25M0000DG | Skyworks晶振 | Si530 | 25 MHz | LVPECL | 3.3V | ±7ppm |
| 530CA36M0000DG | Skyworks晶振 | Si530 | 36 MHz | CMOS | 3.3V | ±50ppm |
| 530AA40M0790DGR | Skyworks晶振 | Si530 | 40.079 MHz | LVPECL | 3.3V | ±50ppm |
| 530FA40M0790DGR | Skyworks晶振 | Si530 | 40.079 MHz | LVDS | 2.5V | ±50ppm |
| 530CA36M0000DGR | Skyworks晶振 | Si530 | 36 MHz | CMOS | 3.3V | ±50ppm |
| 530AA127M000DGR | Skyworks晶振 | Si530 | 127 MHz | LVPECL | 3.3V | ±50ppm |
| 530AA40M0790DG | Skyworks晶振 | Si530 | 40.079 MHz | LVPECL | 3.3V | ±50ppm |
| 530FA40M0790DG | Skyworks晶振 | Si530 | 40.079 MHz | LVDS | 2.5V | ±50ppm |
| 530AA127M000DG | Skyworks晶振 | Si530 | 127 MHz | LVPECL | 3.3V | ±50ppm |
| 530AB24M0000DGR | Skyworks晶振 | Si530 | 24 MHz | LVPECL | 3.3V | ±20ppm |
| 530AB24M5760DGR | Skyworks晶振 | Si530 | 24.576 MHz | LVPECL | 3.3V | ±20ppm |
| 530BB122M880DGR | Skyworks晶振 | Si530 | 122.88 MHz | LVDS | 3.3V | ±20ppm |
| 530DB10M0000DGR | Skyworks晶振 | Si530 | 10 MHz | CML | 3.3V | ±20ppm |
| 530NB122M880DGR | Skyworks晶振 | Si530 | 122.88 MHz | LVDS | 3.3V | ±20ppm |
| 530AB24M0000DG | Skyworks晶振 | Si530 | 24 MHz | LVPECL | 3.3V | ±20ppm |
| 530AB24M5760DG | Skyworks晶振 | Si530 | 24.576 MHz | LVPECL | 3.3V | ±20ppm |
| 530BB122M880DG | Skyworks晶振 | Si530 | 122.88 MHz | LVDS | 3.3V | ±20ppm |
| 530DB10M0000DG | Skyworks晶振 | Si530 | 10 MHz | CML | 3.3V | ±20ppm |
| 530NB122M880DG | Skyworks晶振 | Si530 | 122.88 MHz | LVDS | 3.3V | ±20ppm |
| 530CA96M0000DG | Skyworks晶振 | Si530 | 96 MHz | CMOS | 3.3V | ±50ppm |
| 530CA98M3040DG | Skyworks晶振 | Si530 | 98.304 MHz | CMOS | 3.3V | ±50ppm |
| 530GA100M000DG | Skyworks晶振 | Si530 | 100 MHz | CMOS | 2.5V | ±50ppm |
| 530GA103M000DG | Skyworks晶振 | Si530 | 103 MHz | CMOS | 2.5V | ±50ppm |
| 530GA106M250DG | Skyworks晶振 | Si530 | 106.25 MHz | CMOS | 2.5V | ±50ppm |
| 530GA125M000DG | Skyworks晶振 | Si530 | 125 MHz | CMOS | 2.5V | ±50ppm |
| 530GA12M4000DG | Skyworks晶振 | Si530 | 12.4 MHz | CMOS | 2.5V | ±50ppm |
| 530GA13M5000DG | Skyworks晶振 | Si530 | 13.5 MHz | CMOS | 2.5V | ±50ppm |
| 530GA16M8000DG | Skyworks晶振 | Si530 | 16.8 MHz | CMOS | 2.5V | ±50ppm |
| 530GA22M5792DG | Skyworks晶振 | Si530 | 22.5792 MHz | CMOS | 2.5V | ±50ppm |
