- 規格型號：97479677
- 頻率：32.768kHz
- 尺寸：1610mm
- 產品描述：7BG03276A3Q,DST1610A音叉晶振,KDS高精度晶振,產品經過嚴格的生產工藝管控與性能測試,具備低功耗,低相位噪聲的優勢,能有效減少對周邊電路的干擾,適用于物聯網傳感器,微型控制器等低功耗智能設備.

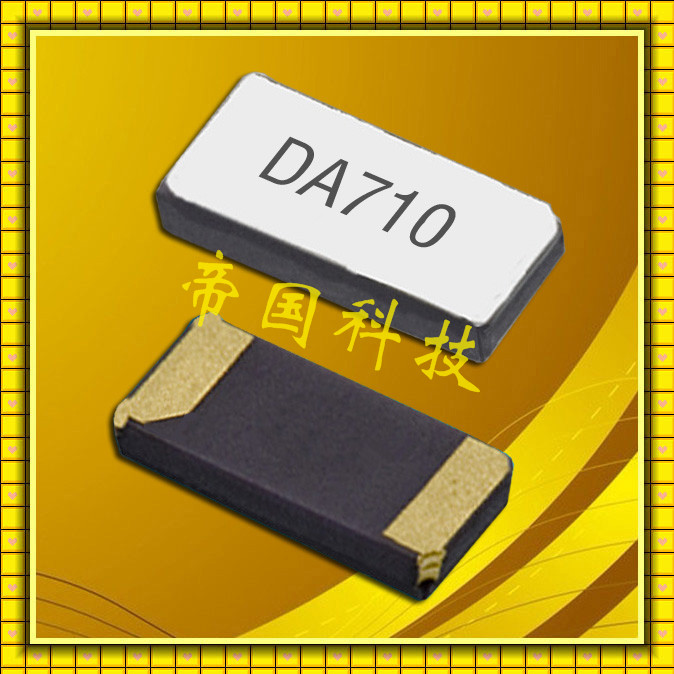

7BG03276A3Q,DST1610A音叉晶振,KDS高精度晶振
.png)
.png)
7BG03276A3Q,DST1610A音叉晶振,KDS高精度晶振
KDS高精度7BG03276A3Q&DST1610A貼片晶振,以高可靠性和優異的電氣性能贏得市場認可.產品采用先進的真空封裝技術,有效隔絕水汽,灰塵等外界因素影響,延長使用壽命.在頻率溫度特性上表現突出,可在-40℃至85℃的寬溫范圍內穩定工作,精準匹配智能手機,平板電腦,智能手表等消費電子產品的時序需求,助力設備實現高效運行.
.png)

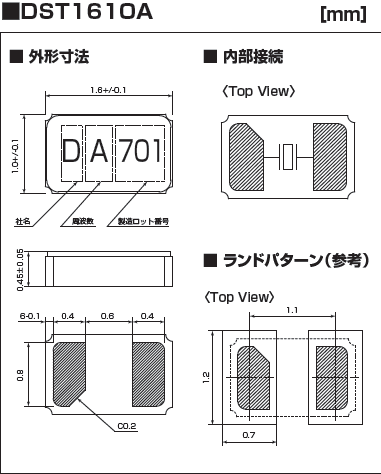

7BG03276A3Q,DST1610A音叉晶振,KDS高精度晶振
| 原廠型號 Originalmodel： | 7BG03276A3Q | 品牌brand： | KDS |
| 品牌brand： | KDS | 高度PackageHeight： | 0.45mm |
| 型號名稱 Modelname： | DST1610A | 溫度OperatingTemperature | -40+85℃ |
| Type系列： | KHz Crystal | 腳位Termination： | 2-Pad |
| 頻率 frequency： | 32.768KHz晶振 | 封裝類型PackageType： | 2-smd |
| frequencytolerance頻率容差 | 20PP | 最小包裝數MPQ： | 1000 |
| Loadcapacitance 負載電容 | 9PF | Packaging 包裝 | TapeandReel |
| Size/Dimension尺寸 | 1610mm | 安裝方式 Installation： | Surfacemount |
.png)
7BG03276A3Q,DST1610A音叉晶振,KDS高精度晶振
7BG03276A3Q,DST1610A音叉晶振,KDS高精度晶振
| KDS晶振 | TJF080DP1AA003 | DST310S | 3215 | 32.768KHZ | 8PF | 20PPM |
| KDS晶振 | 1TJF080DP1AA003 | DST310S | 3215 | 32.768KHZ | 8PF | 20PPM |
| KDS晶振 | 1TJF0SPDJ1AI00S | DST310S | 3215 | 32.768KHZ | 10.0PF | 20PPM |
| KDS晶振 | 1TJF080DP1AI00P | DST310S | 3215 | 32.768KHZ | 8PF | 20PPM |
| KDS晶振 | 1TJF090DP1AI007 | DST310S | 3215 | 32.768KHZ | 9PF | 20PPM |
| KDS晶振 | 1TJF0SPDP1AI008 | DST310S | 3215 | 32.768KHZ | 10.0PF | 20PPM |
| KDS晶振 | 1TJF125DP1AI009 | DST310S | 3215 | 32.768KHZ | 12.5PF | 20PPM |
| KDS晶振 | 1TJF090DP1AA00L | DST310S | 3215 | 32.768KHZ | 9PF | 20PPM |
| KDS晶振 | 1TJF080DP1AA00K | DST310S | 3215 | 32.768KHZ | 8PF | 20PPM |
| KDS晶振 | 1TJF0SPDP1AA00G | DST310S | 3215 | 32.768KHZ | 10.0PF | 20PPM |
| KDS晶振 | 1TJF0SPDN1A000B | DST310S | 3215 | 32.768KHZ | 10.0PF | 20PPM |
| KDS晶振 | 1TD125DGNS003 | DT-26 | 206 | 32.768KHZ | 12.5PF | 20PPM |
| KDS晶振 | 1TD125DHNS036 | DT-26 | 206 | 32.768KHZ | 12.5PF | 20PPM |
| KDS晶振 | 1TD125DHNS002 | DT-26 | 206 | 32.768KHZ | 12.5PF | 20PPM |
| KDS晶振 | 1TD060DHNS014 | DT-26 | 206 | 32.768KHZ | 6.0PF | 20PPM |
| KDS晶振 | 1TD125BHNS001 | DT-26 | 206 | 32.768KHZ | 12.5PF | 10PPM |
| KDS晶振 | 1TD075BHNS001 | DT-26 | 206 | 32.768KHZ | 7.5PF | 10PPM |
| KDS晶振 | 1TD125BFNS001 | DT-26 | 206 | 32.768KHZ | 12.5PF | 10PPM |
| KDS晶振 | 1TD1001HNS001 | DT-26 | 206 | 32.768KHZ | 10.0PF | -6/+2PPM |
| KDS晶振 | 1TD1250HNS005 | DT-26 | 206 | 32.768KHZ | 12.5PF | 30/40P |
| KDS晶振 | 1TC125DFNS030 | DT-38 | 308 | 32.768KHZ | 12.5PF | 20PPM |
| KDS晶振 | 1TC125NFNS002 | DT-38 | 308 | 32.768KHZ | 12.5PF | 1000PPM |
| KDS晶振 | 1TC125AFSS003 | DT-38 | 308 | 32.768KHZ | 12.5PF | 5PPM |
| KDS晶振 | 1TC250E65 | DT-38 | 308 | 32.768KHZ | 12.5PF | +12/+28PPM |
| KDS晶振 | 1C240000AB0G | DSX321G | 3225 | 40.000MHZ | 10PF | 10PPM |
| KDS晶振 | 1C241600CDAA | DSX321G | 3225 | 41.6MHZ | 10PF | 30PPM |
| KDS晶振 | 1AJ043324C | SMD-49 | 11*4.6 | 4.332MHZ | 12PF | 20PPM |
| KDS晶振 | 1ZZNAE26000AB0J | DSX211SH | 2016 | 26.000MHZ | 7PF | 10PPM |
| KDS晶振 | 1AJ17408AAGA | SMD-49 | 11*4.6 | 17.408MHZ | 16PF | 50PPM |
| KDS晶振 | 1AJ250004B | SMD-49 | 11*4.6 | 25.000MHZ | 20PF | 30PPM |
| KDS晶振 | 1ZZCAA24000BE0B | DSX211G | 2016 | 24.000MHZ | 10PF | 20PPM |
| KDS晶振 | 1N227000BB0AK | DSX321G | 3225 | 27.000MHZ | 11PF | 12PPM |
| KDS晶振 | 1N230000AB0C | DSX321G | 3225 | 30.000MHZ | 10PF | 30PPM |
| KDS晶振 | 1N240000AB0J | DSX321G | 3225 | 40.000MHZ | 15PF | 15PPM |
| KDS晶振 | 1XSE098304AR2 | DSO321SR | 3225 | 98.304MHZ | 3.3V | 50ppm |
| KDS晶振 | 1AJ100005B | SMD-49 | 11*4.6 | 10.000MHZ | 12PF | 50PPM |
| KDS晶振 | 1ZN326000AB0A | DSX221SH | 2520 | 26.000MHZ | 7PF | 10PPM |
| KDS晶振 | 1AJ240006AEA | SMD-49 | 11*4.6 | 24.000MHZ | 16PF | 50PPM |
| KDS晶振 | 1AJ240006AK | SMD-49 | 11*4.6 | 24.000MHZ | 16PF | 30PPM |
| KDS晶振 | 1AJ240006BB | SMD-49 | 11*4.6 | 24.000MHZ | 16PF | 30PPM |
| KDS晶振 | 1AJ245765C | SMD-49 | 11*4.6 | 24.576MHZ | 18PF | 30PPM |
| KDS晶振 | ZC08759 | DSO211AH | 2016 | 25.000MHZ | 3.3V | 50ppm |
| KDS晶振 | 1AR270002GA | SMD-49 | 11*4.6 | 27.000MHZ | 12.9PF | 20PPM |
| KDS晶振 | 1AR304002A | SMD-49 | 11*4.6 | 30.400MHZ | 12PF | 50ppm |
| KDS晶振 | 1XXD16367MAA | DSB211SDN | 2016 | 16.367MHZ | 3.3V | 1.5ppm |
| KDS晶振 | ZC12467 | DSA211SDN | 2016 | 16.32MHZ | 3.3V | 1.5ppm |
| KDS晶振 | 1XXB16367MAA | DSB221SDN | 2520 | 16.367MHZ | 2.8V | 1.5ppm |
| KDS晶振 | 1XXB16369JFA | DSB221SDN | 2520 | 16.369MHZ | 3.3V | 1.5ppm |
| KDS晶振 | ZC09382 | DSA535SG | 5032 | 18.432MHZ | 3.3V | 1.5ppm |
| KDS晶振 | ZC12456 | DSB211SDN | 2016 | 16.320MHZ | 3.3V | 1.5ppm |
| KDS晶振 | 1ZNA32000BB0B | DSX221G | 2520 | 32.000MHZ | 12PF | 15ppm |
| KDS晶振 | ZC12965 | DSA321SDN | 3225 | 23.04MHZ | 3.3V | 1.5ppm |
| KDS晶振 | ZC13727 | DSX221SH | 2520 | 24.000MHZ | 10PF | 30ppm |
| KDS晶振 | 1ZNA16000AB0P | DSX221G | 2520 | 16.000MHZ | 9PF | 10ppm |
| KDS晶振 | X1H013000B81H | HSX531S | 5032 | 13.000MHZ | 8PF | 10ppm |
| KDS晶振 | X4S013000DA1H-W | HSX421S | 4025 | 13.000MHZ | 10PF | 20ppm |
| KDS晶振 | 1XSE009600AV | DSO321SV | 3225 | 9.6MHZ | 3.3V | 100ppm |
| KDS晶振 | 1XSE012000AR58 | DSO321SR | 3225 | 12.000MHZ | 3.3V | 50ppm |
| KDS晶振 | 1ZZNAE48000ZZ0R | DSX211SH | 2016 | 48.000MHZ | 7PF | 20PPM |
| KDS晶振 | 1N227000EE0L | DSX321G | 3225 | 27.000MHZ | 9PF | 50ppm |
