規格型號：2813561
頻率：8 MHz
尺寸：11.50mm x 4.66mm
PDF
產品描述：HC-49/U-S8000000ABJB,Citizen無源晶振,49S晶振,具備出色的抗干擾能力與溫度穩定性,8MHz固定頻率輸出搭配低等效串聯電阻(ESR)設計,確保信號傳輸損耗小,響應速度快,是通信模塊,單片機,物聯網終端等設備的理想時鐘部件,...

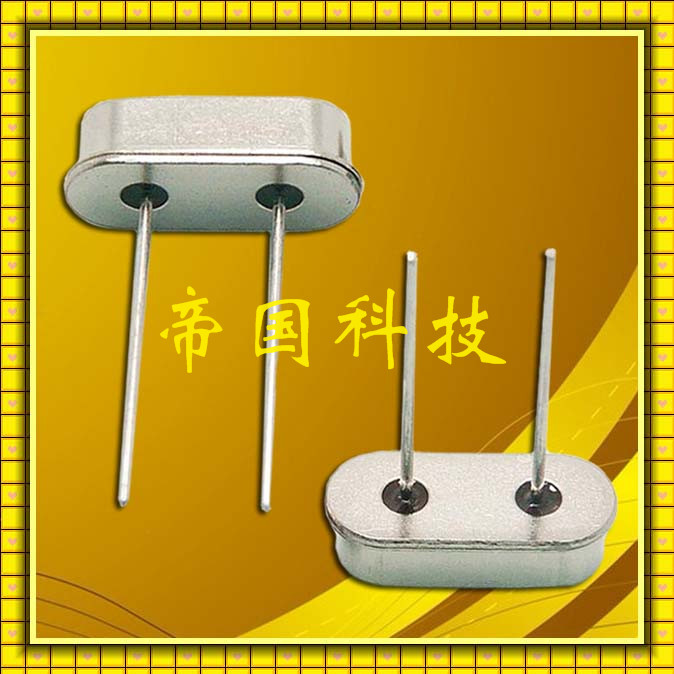

HC-49/U-S8000000ABJB,Citizen無源晶振,49S晶振
專為嵌入式系統量身打造的Citizen無源晶振HC-49/U-S8000000ABJB,采用49S通用封裝可直接適配主流PCB板設計,8MHz頻率完美匹配微控制器(MCU),傳感器,6G藍牙模塊晶振等核心器件的時序需求.產品通過嚴格的可靠性測試,在高低溫,潮濕等復雜環境下仍能保持頻率精度,廣泛應用于智能家居,工業控制,消費電子等領域.

HC-49/U-S8000000ABJB,Citizen無源晶振,49S晶振

原廠型號 Originalmodel：	HC-49/U-S8000000ABJB	品牌brand：	Citizen
品牌brand：	日本西鐵城晶振	高度PackageHeight：	3.5mm
型號名稱 Modelname：	HC-49/U-S	溫度OperatingTemperature	-10+70℃
Type系列：	MHZ Crystal	腳位Termination：	2-Pad
頻率 frequency：	8M	封裝類型PackageType：	2-Smd
frequencytolerance頻率容差	30PP	最小包裝數MPQ：	-
Loadcapacitance 負載電容	18PF	Packaging 包裝	TapeandReel

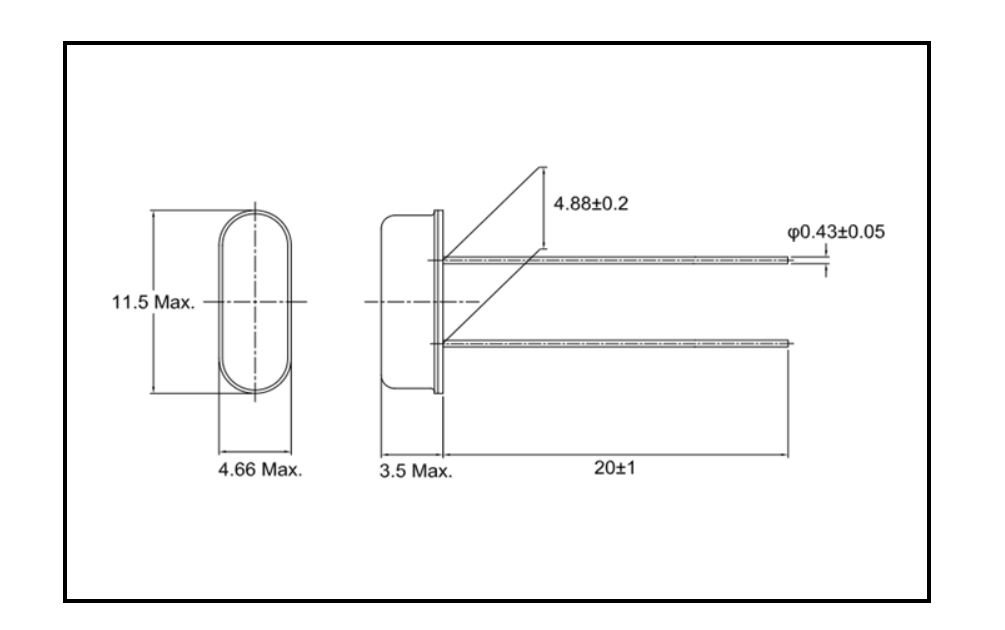

Size/Dimension尺寸	11.50mm x 4.66mm	安裝方式 Installation：	Surfacemount

HC-49/U-S8000000ABJB,Citizen無源晶振,49S晶振

HC-49/U-S8000000ABJB,Citizen無源晶振,49S晶振

XRCGB25M000F3M00R0	Murata村田晶振	XRCGB	25 MHz	±40ppm	±30ppm	6pF	150 Ohms
XRCGB27M120F3M00R0	Murata村田晶振	XRCGB	27.12 MHz	±40ppm	±30ppm	6pF	150 Ohms
XRCGB24M000F3M00R0	Murata村田晶振	XRCGB	24 MHz	±40ppm	±30ppm	6pF	150 Ohms
XRCGB24M000F2P00R0	Murata村田晶振	XRCGB	24 MHz	±20ppm	±20ppm	6pF	150 Ohms
XRCGB32M000F1H01R0	Murata村田晶振	-	32 MHz	±10ppm	±10ppm	8pF	60 Ohms
XRCGB32M000F1H00R0	Murata村田晶振	XRCGB	32 MHz	±10ppm	±10ppm	6pF	60 Ohms
XRCGB25M000F3A00R0	Murata村田晶振	XRCGB	25 MHz	±35ppm	±35ppm	6pF	100 Ohms
XRCGB24M000F0L00R0	Murata村田晶振	XRCGB	24 MHz	±50ppm	±100ppm	6pF	150 Ohms
XRCGB48M000F4M00R0	Murata村田晶振	XRCGB	48 MHz	±40ppm	±45ppm	6pF	100 Ohms
XRCGB24M000F3N00R0	Murata村田晶振	XRCGB	24 MHz	±30ppm	±30ppm	6pF	150 Ohms
XRCGB27M120F3M10R0	Murata村田晶振	XRCGB	27.12 MHz	±40ppm	±30ppm	10pF	80 Ohms
XRCGB25M000F3M18R0	Murata村田晶振	-	25 MHz	±40ppm	±30ppm	12pF	80 Ohms
XRCGB32M000F2P01R0	Murata村田晶振	-	32 MHz	±20ppm	±20ppm	8pF	100 Ohms
XRCGB32M000F2P00R0	Murata村田晶振	XRCGB	32 MHz	±20ppm	±20ppm	6pF	100 Ohms
XRCGB25M000F2P02R0	Murata村田晶振	-	25 MHz	±20ppm	±20ppm	10pF	150 Ohms
XRCGB27M120F2P00R0	Murata村田晶振	XRCGB	27.12 MHz	±20ppm	±20ppm	6pF	150 Ohms
XRCGB25M000F2P00R0	Murata村田晶振	XRCGB	25 MHz	±20ppm	±20ppm	6pF	150 Ohms
XRCGB24M000F2P01R0	Murata村田晶振	-	24 MHz	±20ppm	±20ppm	8pF	150 Ohms
XRCGB27M120F3M13R0	Murata村田晶振	-	27.12 MHz	±40ppm	±30ppm	10pF	60 Ohms
XRCGB32M000F2P2CR0	Murata村田晶振	XRCGB	32 MHz	±20ppm	±20ppm	8pF	70 Ohms
XRCGB32M000FBH50R0	Murata村田晶振	-	32 MHz	±10ppm	±15ppm	10pF	60 Ohms
XRCGB24M000F2P91R0	Murata村田晶振	XRCGB	24 MHz	±20ppm	±20ppm	8pF	60 Ohms
XRCGB16M000FXN00R0	Murata村田晶振	-	16 MHz	±40ppm	±40ppm	6pF	200 Ohms
XRCGB32M000F1H02R0	Murata村田晶振	-	32 MHz	±10ppm	±10ppm	10pF	60 Ohms
XRCGB32M000F1H19R0	Murata村田晶振	-	32 MHz	±10ppm	±10ppm	6pF	50 Ohms
XRCGB40M000F5A00R0	Murata村田晶振	-	40 MHz	±65ppm	±50ppm	6pF	70 Ohms
XRCGB24M000F3A00R0	Murata村田晶振	XRCGB	24 MHz	±35ppm	±30ppm	6pF	120 Ohms
XRCGB27M120F3A00R0	Murata村田晶振	XRCGB	27.12 MHz	±35ppm	±30ppm	6pF	80 Ohms
XRCGB25M000F3A01R0	Murata村田晶振	XRCGB	25 MHz	±35ppm	±30ppm	8pF	100 Ohms
XRCGB48M000F5A00R0	Murata村田晶振	-	48 MHz	±65ppm	±50ppm	6pF	60 Ohms
XRCGE25M000FBA1AR0	Murata村田晶振	XRCFD	25 MHz	±35ppm	±15ppm	6pF	100 Ohms
XRCHA20M000F0A01R0	Murata村田晶振	XRCHA	20 MHz	±100ppm	±100ppm	8pF	80 Ohms
XRCGB27M120F0L00R0	Murata村田晶振	-	27.12 MHz	±50ppm	±100ppm	6pF	150 Ohms
XRCGB32M000F0L00R0	Murata村田晶振	-	32 MHz	±50ppm	±100ppm	6pF	100 Ohms
XRCGB24M000FAN00R0	Murata村田晶振	XRCGB	24 MHz	±40ppm	±25ppm	6pF	150 Ohms
XRCGB38M400F4M00R0	Murata村田晶振	-	38.4 MHz	±40ppm	±45ppm	6pF	100 Ohms
XRCGB50M000F4M00R0	Murata村田晶振	-	50 MHz	±40ppm	±45ppm	6pF	65 Ohms
XRCGB32M000F3M00R0	Murata村田晶振	-	32 MHz	±40ppm	±30ppm	6pF	100 Ohms
XRCGB24M000F3M13R0	Murata村田晶振	XRCGB	24 MHz	±40ppm	±30ppm	6pF	150 Ohms
XRCGB32M000F2P02R0	Murata村田晶振	-	32 MHz	±20ppm	±20ppm	10pF	100 Ohms
XRCGB30M000F2P00R0	Murata村田晶振	XRCGB	30 MHz	±20ppm	±20ppm	6pF	100 Ohms
XRCGB27M120F2P02R0	Murata村田晶振	-	27.12 MHz	±20ppm	±20ppm	10pF	150 Ohms
XRCGB32M000F2P26R0	Murata村田晶振	-	32 MHz	±20ppm	±20ppm	5pF	70 Ohms
XRCGB31M250F2P00R0	Murata村田晶振	XRCGB	31.25 MHz	±20ppm	±20ppm	6pF	100 Ohms
XRCGB27M120F3G00R0	Murata村田晶振	-	27.12 MHz	±50ppm	±30ppm	6pF	150 Ohms
XRCGB16M000FXN22R0	Murata村田晶振	XRCGB	16 MHz	±40ppm	±40ppm	8pF	200 Ohms
XRCGB27M600F2C00R0	Murata村田晶振	-	27.6 MHz	±20ppm	±20ppm	6pF	80 Ohms
XRCGB24M000F1H01R0	Murata村田晶振	-	24 MHz	±10ppm	±10ppm	8pF	80 Ohms
XRCGB26M000F1H02R0	Murata村田晶振	-	26 MHz	±10ppm	±10ppm	10pF	60 Ohms
XRCGB24M000F1H70R0	Murata村田晶振	-	24 MHz	±20ppm	±10ppm	6pF	80 Ohms
XRCGB32M000F1H83R0	Murata村田晶振	-	32 MHz	±15ppm	±10ppm	9pF	60 Ohms
XRCGE27M000FBA1AR0	Murata村田晶振	XRCGE	27 MHz	±35ppm	±15ppm	6pF	80 Ohms
XRCGB26M000F3A00R0	Murata村田晶振	-	26 MHz	±35ppm	±30ppm	6pF	80 Ohms
XRCGE26M000FBA1BR0	Murata村田晶振	XRCGE	26 MHz	±35ppm	±15ppm	8pF	80 Ohms
XRCGE20M000F3A1AR0	Murata村田晶振	XRCFD	20 MHz	±45ppm	±30ppm	6pF	150 Ohms
XRCGB24M000F2A01R0	Murata村田晶振	XRCGB	24 MHz	±35ppm	±20ppm	8pF	120 Ohms
XRCGB27M120F3P00R0	Murata村田晶振	-	27.12 MHz	±20ppm	±30ppm	6pF	150 Ohms
XRCGB32M000F2P55R0	Murata村田晶振	XRCGB	32 MHz	±20ppm	±20ppm	6pF	80 Ohms
XRCPB26M000F2P00R0	Murata村田晶振	XRCPB	26 MHz	±20ppm	±20ppm	6pF	150 Ohms
XRCGB32M000F1H18R0	Murata村田晶振	XRCFD	32 MHz	±15ppm	±10ppm	9pF	40 Ohms
