規格型號：38216733
頻率：8MHZ
尺寸：3225MM
PDF
產品描述：NX3225GD-8MHZ-STD-CRA-3,日產進口NDK晶振,3225黑色面陶瓷晶振,具備優異的絕緣性與抗干擾能力,能減少外部電磁信號(EMI)對內部晶體的影響.產品可在-40+150℃寬溫范圍內保持頻率穩定,從容應對高低溫極端工況.

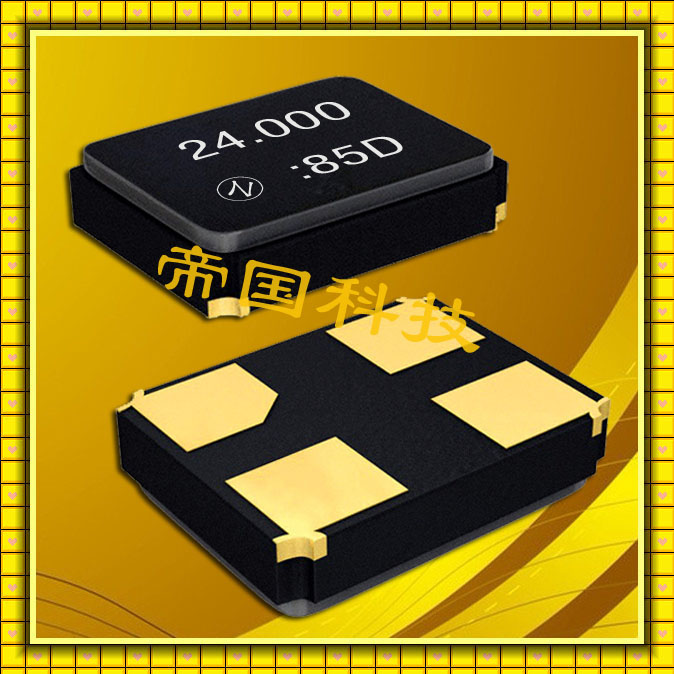

NX3225GD-8MHZ-STD-CRA-3,日產進口NDK晶振,3225黑色面陶瓷晶振
日產進口NDKNX3225GD-8MHZ-STD-CRA-3是一款主打高頻穩定性的3225封裝陶瓷晶振,核心頻率精準鎖定為8MHz,采用行業通用的3225貼片規格(尺寸3.2mm×2.5mm),搭配獨特的黑色面陶瓷外殼,兼具結構強度與視覺辨識度.作為NDK原廠出品的無源晶振,其頻率公差控制嚴格,典型值可達±10ppm,同時具備低等效串聯電阻(ESR≤70Ω)特性,能有效減少信號傳輸損耗,為微控制器,傳感器模塊等電子元件提供穩定諧振信號,保障設備時序邏輯精準運行.

NX3225GD-8MHZ-STD-CRA-3,日產進口NDK晶振,3225黑色面陶瓷晶振

原廠型號 Originalmodel：	NX3225GD-8MHZ-STD-CRA-3	品牌brand：	NDK晶振
型號名稱 Modelname：	NX3225GD	Size/Dimension尺寸	3225mm
Type系列：	MHZ Crystal	高度PackageHeight：	1.0mm
頻率 frequency：	8M	溫度OperatingTemperature	-40+150℃
Frequency Stability頻率穩定度	-	腳位Termination：	2-Pad
frequencytolerance頻率容差	50PP	封裝類型PackageType：	2-SMD
Loadcapacitance 負載電容	8PF	最小包裝數MPQ：	3000

NX3225GD-8MHZ-STD-CRA-3,日產進口NDK晶振,3225黑色面陶瓷晶振

NZ1612SH	12MHZ	NSC5152A	NZ1612SH-12.000MHZ-NSC5152A	1.6x1.2
NZ1612SH	12.288MHZ	NSC5152A	NZ1612SH-12.288MHZ-NSC5152A	1.6x1.2
NZ1612SH	13MHZ	NSC5152A	NZ1612SH-13.000MHZ-NSC5152A	1.6x1.2
NZ1612SH	16MHZ	NSC5152A	NZ1612SH-16.000MHZ-NSC5152A	1.6x1.2
NZ1612SH	19.2MHZ	NSC5152A	NZ1612SH-19.200MHZ-NSC5152A	1.6x1.2
NZ1612SH	20MHZ	NSC5152A	NZ1612SH-20MHZ-NSC5152A	1.6x1.2
NZ1612SH	24MHZ	NSC5152A	NZ1612SH-24MHZ-NSC5152A	1.6x1.2
NZ1612SH	25MHZ	NSC5152A	NZ1612SH-25MHZ-NSC5152A	1.6x1.2
NZ1612SH	26MHZ	NSC5152A	NZ1612SH-26MHZ-NSC5152A	1.6x1.2
NZ1612SH	40MHZ	NSC5152A	NZ1612SH-40MHZ-NSC5152A	1.6x1.2
NZ1612SH	48MHZ	NSC5152A	NZ1612SH-48MHZ-NSC5152A	1.6x1.2
NZ1612SH	50MHZ	NSC5152A	NZ1612SH-50MHZ-NSC5152A	1.6x1.2
NZ1612SH	52MHZ	NSC5152A	NZ1612SH-52MHZ-NSC5152A	1.6x1.2
NZ1612SH	80MHZ	NSC5152A	NZ1612SH-80MHZ-NSC5152A	1.6x1.2
NZ1612SH	12MHZ	NSC5152B	NZ1612SH-12MHZ-NSC5152B	1.6x1.2
NZ1612SH	12.288MHZ	NSC5152B	NZ1612SH-12.288MHZ-NSC5152B	1.6x1.2
NZ1612SH	13MHZ	NSC5152B	NZ1612SH-13MHZ-NSC5152B	1.6x1.2
NZ1612SH	16MHZ	NSC5152B	NZ1612SH-16MHZ-NSC5152B	1.6x1.2
NZ1612SH	19.2MHZ	NSC5152B	NZ1612SH-19.2MHZ-NSC5152B	1.6x1.2
NZ1612SH	20MHZ	NSC5152B	NZ1612SH-20MHZ-NSC5152B	1.6x1.2
NZ1612SH	24MHZ	NSC5152B	NZ1612SH-24MHZ-NSC5152B	1.6x1.2
NZ1612SH	25MHZ	NSC5152B	NZ1612SH-25MHZ-NSC5152B	1.6x1.2
NZ1612SH	26MHZ	NSC5152B	NZ1612SH-26MHZ-NSC5152B	1.6x1.2
NZ1612SH	40MHZ	NSC5152B	NZ1612SH-40MHZ-NSC5152B	1.6x1.2
NZ1612SH	48MHZ	NSC5152B	NZ1612SH-48MHZ-NSC5152B	1.6x1.2
NZ1612SH	50MHZ	NSC5152B	NZ1612SH-50MHZ-NSC5152B	1.6x1.2
NZ1612SH	52MHZ	NSC5152B	NZ1612SH-52MHZ-NSC5152B	1.6x1.2
NZ1612SH	80MHZ	NSC5152B	NZ1612SH-80MHZ-NSC5152B	1.6x1.2
NZ1612SH	12MHZ	NSC5152C	NZ1612SH-12MHZ-NSC5152C	1.6x1.2
NZ1612SH	12.288MHZ	NSC5152C	NZ1612SH-12.288MHZ-NSC5152C	1.6x1.2
NZ1612SH	13MHZ	NSC5152C	NZ1612SH-13MHZ-NSC5152C	1.6x1.2
NZ1612SH	16MHZ	NSC5152C	NZ1612SH-16MHZ-NSC5152C	1.6x1.2
NZ1612SH	19.2MHZ	NSC5152C	NZ1612SH-19.2MHZ-NSC5152C	1.6x1.2
NZ1612SH	20MHZ	NSC5152C	NZ1612SH-20MHZ-NSC5152C	1.6x1.2
NZ1612SH	24MHZ	NSC5152C	NZ1612SH-24MHZ-NSC5152C	1.6x1.2
NZ1612SH	25MHZ	NSC5152C	NZ1612SH-25MHZ-NSC5152C	1.6x1.2
NZ1612SH	26MHZ	NSC5152C	NZ1612SH-26MHZ-NSC5152C	1.6x1.2
NZ1612SH	40MHZ	NSC5152C	NZ1612SH-40MHZ-NSC5152C	1.6x1.2
NZ1612SH	48MHZ	NSC5152C	NZ1612SH-48MHZ-NSC5152C	1.6x1.2
NZ1612SH	50MHZ	NSC5152C	NZ1612SH-50MHZ-NSC5152C	1.6x1.2
NZ1612SH	52MHZ	NSC5152C	NZ1612SH-52MHZ-NSC5152C	1.6x1.2
NZ1612SH	80MHZ	NSC5152C	NZ1612SH-80MHZ-NSC5152C	1.6x1.2
NZ1612SH	12MHZ	NSC5152D	NZ1612SH-12MHZ-NSC5152D	1.6x1.2
NZ1612SH	12.288MHZ	NSC5152D	NZ1612SH-12.288MHZ-NSC5152D	1.6x1.2
NZ1612SH	13MHZ	NSC5152D	NZ1612SH-13MHZ-NSC5152D	1.6x1.2
NZ1612SH	16MHZ	NSC5152D	NZ1612SH-16MHZ-NSC5152D	1.6x1.2
NZ1612SH	19.2MHZ	NSC5152D	NZ1612SH-19.2MHZ-NSC5152D	1.6x1.2
NZ1612SH	20MHZ	NSC5152D	NZ1612SH-20MHZ-NSC5152D	1.6x1.2
NZ1612SH	24MHZ	NSC5152D	NZ1612SH-24MHZ-NSC5152D	1.6x1.2
NZ1612SH	25MHZ	NSC5152D	NZ1612SH-25MHZ-NSC5152D	1.6x1.2
NZ1612SH	26MHZ	NSC5152D	NZ1612SH-26MHZ-NSC5152D	1.6x1.2
NZ1612SH	40MHZ	NSC5152D	NZ1612SH-40MHZ-NSC5152D	1.6x1.2
NZ1612SH	48MHZ	NSC5152D	NZ1612SH-48MHZ-NSC5152D	1.6x1.2
NZ1612SH	50MHZ	NSC5152D	NZ1612SH-50MHZ-NSC5152D	1.6x1.2
NZ1612SH	52MHZ	NSC5152D	NZ1612SH-52MHZ-NSC5152D	1.6x1.2
NZ1612SH	80MHZ	NSC5152D	NZ1612SH-80MHZ-NSC5152D	1.6x1.2
NZ1612SH	12MHZ	NSC5103A	NZ1612SH-12MHZ-NSC5103A	1.6x1.2
NZ1612SH	12.288MHZ	NSC5103A	NZ1612SH-12.288MHZ-NSC5103A	1.6x1.2
NZ1612SH	13MHZ	NSC5103A	NZ1612SH-13MHZ-NSC5103A	1.6x1.2
NZ1612SH	16MHZ	NSC5103A	NZ1612SH-16MHZ-NSC5103A	1.6x1.2
